M200 / M200WD Measuring Device (2" Capacity)
Made in USA 2-Year Component / 5-Year Craftsmanship
Specifications
| Capacity | 2" wire/cable |
|---|---|
| Counter | Counter with count window in direct view of the operator |
| Measuring Wheel | Knurled steel or urethane on precision ball bearings |
| Roller Bushings | Oilite bushings in all rollers |
| Springs | Heavy-duty, prevents slipping of slick wire |
| Construction | Plated steel side plates & arms |
About This Equipment

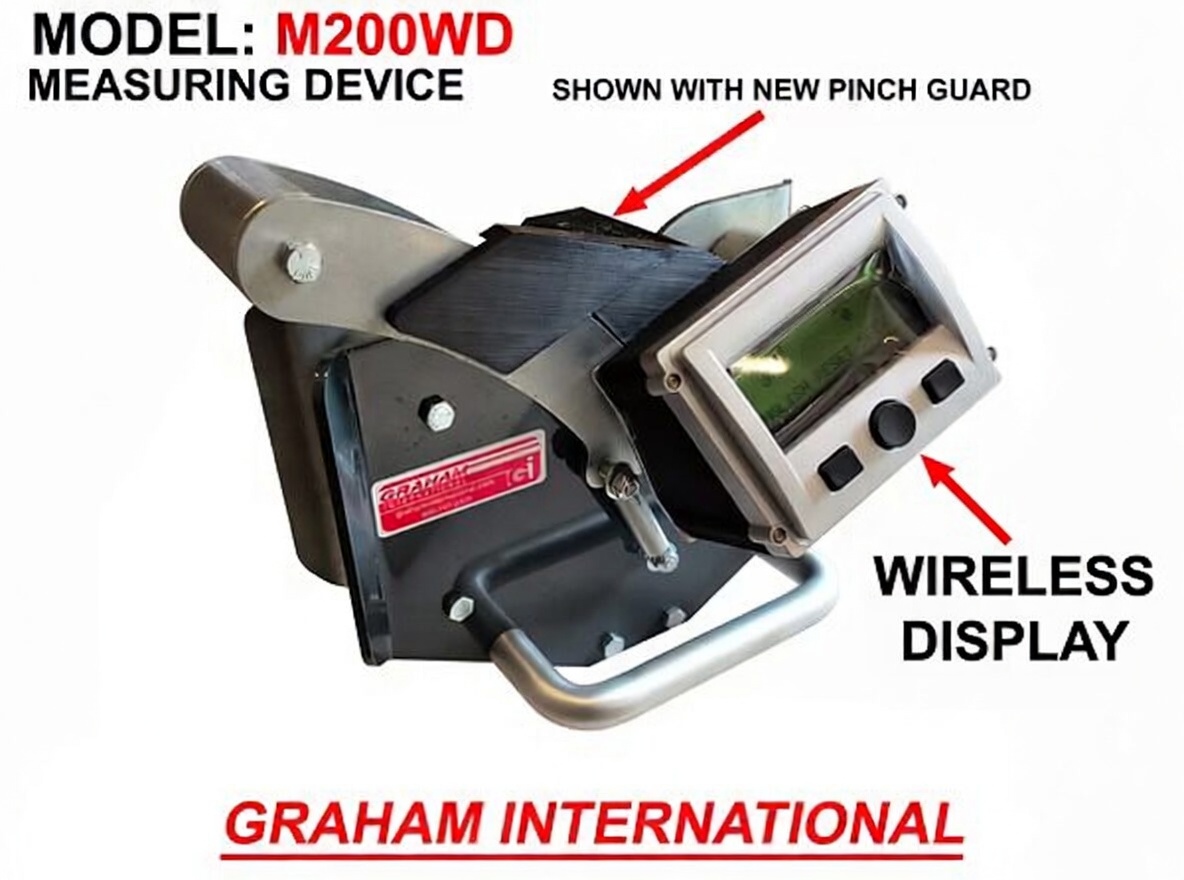

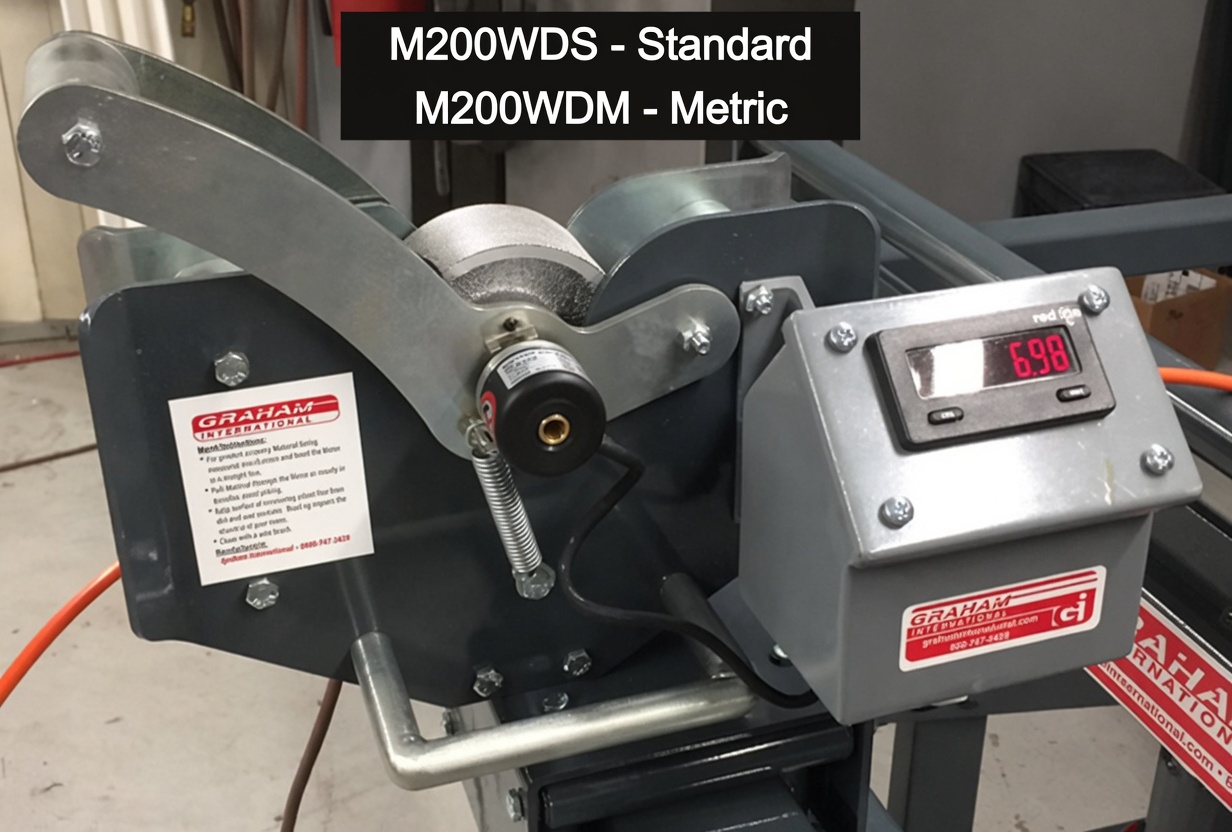

The M200 is a heavy-duty precision measuring device for wire and cable up to 2" diameter. The M200WD variant adds a wireless digital display, available as the M200WDS (standard) or M200WDM (metric). Knurled steel or urethane measuring wheel on precision ball bearings, oilite bushings in all rollers, heavy-duty springs, and counters with count window in direct view of the operator. Plated steel side plates and arms with ergonomic grip handle.
Standard Features
- Knurled Steel or Urethane Measuring Wheel Rotates on Precision Ball Bearings
- Oilite Bushings in all Rollers
- Heavy Duty Springs to prevent slipping of slick wire
- Counters with Count Window in Direct View of the Operator
- Plated Steel Side Plates & Arms
- Ergonomic Grip Handle
