TR Double Depth Reel Rack 5,000 LB.

American flag Made in USA 2-Year Component / 5-Year Craftsmanship

Specifications

Type Track and Trolley Double Depth
Standard Capacity 5,000 lb. per reel
Inserts Wearproof, replaceable
Safety TR Flip Lock reel retention
Request a Quote
Call us: (800) 747-2426

About This Equipment

TR Reel Racks use a track and trolley system for double-depth wire and cable reel storage accessible from one side of the rack. Standard capacity is 5,000 lb. per reel with options for higher capacities. The trolley system allows back reels to roll forward for easy access without moving front reels. Wearproof replaceable inserts and positive-locking safety pins are standard.

Standard Features

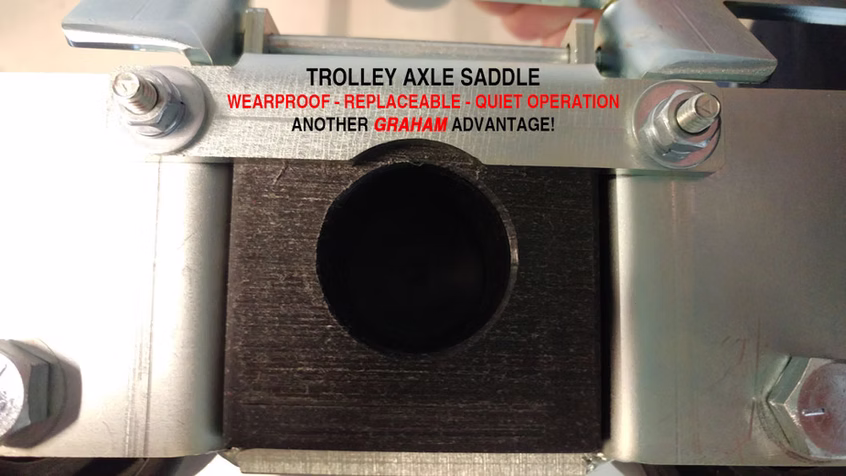

  • Wearproof — replaceable and inexpensive inserts
  • Should never wear out — axles or trolleys
  • Buy once — should never wear out

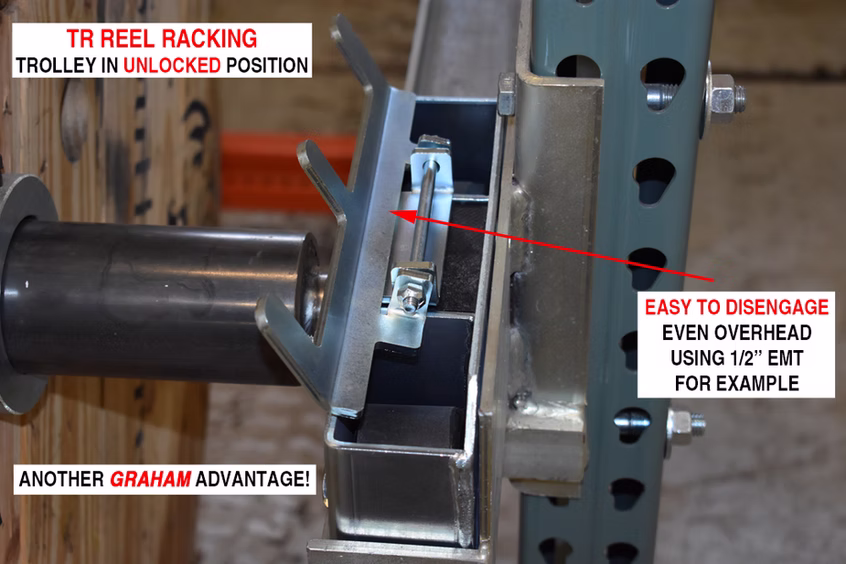

  • TR Flip Lock provides safe, quiet reel retention
  • Wearproof inserts reduce warehouse noise
  • Center of reels reside directly over columns
  • Organize reel storage and dispensing — get reels off the floor
  • Solid steel reel adapter bushings and collars included
  • Floor plan design available — let us help
  • Configurable to suit your warehouse and reels
  • Free standing or against a wall
  • All upright frames must be anchored to the floor

Available Options

  • Above 5,000 lb. per reel weight capacity available
  • Additional center reel trolleys that pin in place
  • DDR Guides — guides wire from double depth back reels
  • Reel Loading Cradles
  • Replacement trolley inserts
  • Replacement trolley locks
  • Inventory card holders
  • Inventory cards

Information Required For Quote

To provide an accurate quote for your racking system, please have the following information ready:

  • Ceiling Height or Rack Height Required
  • Maximum Reel Diameter
  • Maximum Reel Width (Outside Flange to Outside Flange)
  • Maximum Reel Weight
  • Do you need overhead storage?
  • Wire Room Layout Drawings Available
Request a Racking Quote

Industry-Best Warranty

Every piece of Graham International equipment is backed by our industry-leading warranty.

2-Year Component Warranty Graham International warrants all units and equipment against defects in material and workmanship under normal use and service for 24 months from Invoice Date, including manufacturers components with shorter warranties.
5-Year Craftsmanship Warranty All Graham International equipment carries a 5-year warranty against defects in workmanship. When we say our equipment is built to last, we put the warranty behind it.
Full Warranty Details

Ready to Get a Quote on the TR Double Depth Reel Rack 5,000 LB.?

Our team is ready to help you select the right configuration for your operation — and can design your entire wire room layout.
