C70 Series Powered Coiling Machines

American flag Made in USA 2-Year Component / 5-Year Craftsmanship

Specifications

Motor 1 HP High Torque DC Drive
Variable Speed 0 to 40 RPM
Pull Capacity Pulls from 3,000 lb. reels
Measuring Device M200 included
Safety Variable speed only, safety foot switch
Available Sizes 15", 20", 20" HD collapsible coiler
Finished Coil Weight Up to 140 lbs. (varies by model)
Request a Quote
Call us: (800) 747-2426

About This Equipment

The C70 Series brings powered performance to coiling operations with a 1 HP high torque DC drive running at variable speeds from 0 to 40 RPM. Pulls from 3,000 lb. reels with ease. The included M200 measuring device provides accurate footage counting. A safety foot switch ensures variable speed only operation. Optimal working height, large tool tray, floor locks, wire guide, and precision ball bearing coiler mount keep production efficient. Available in 15", 20", and 20" HD configurations.

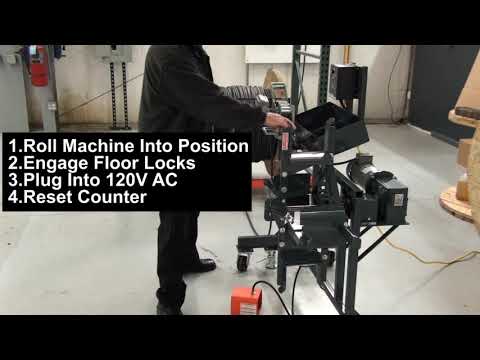

See It In Action

Available Models

Model Configuration
C70-15 15" Collapsible Coiler — 100 lb. capacity

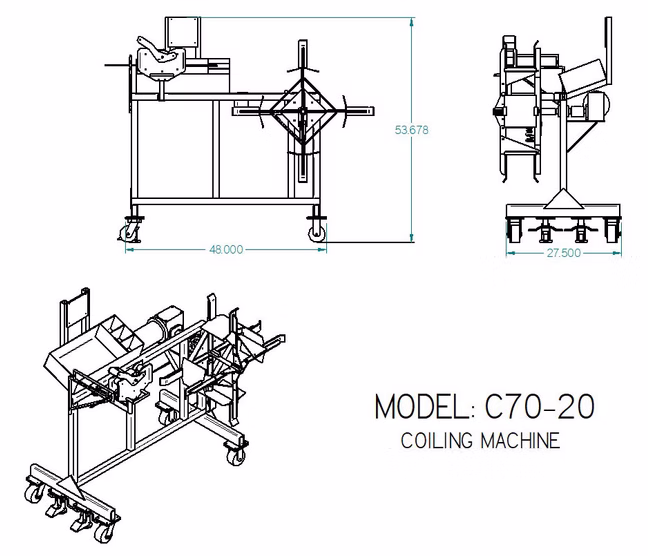

C70-20 20" Collapsible Coiler — 120 lb. capacity
C70-20HD Heavy Duty 20" Collapsible Coiler — 140 lb. capacity

Standard Features

  • 1 HP high torque DC drive
  • M200 measuring device included
  • Safety foot switch
  • Optimal working height

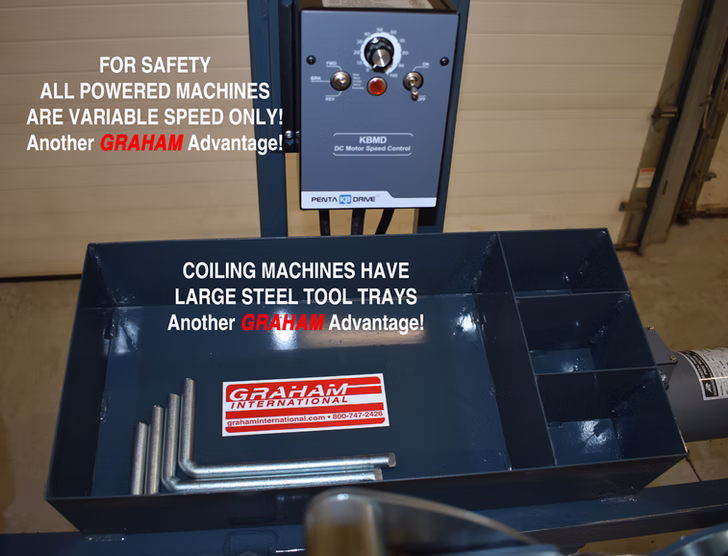

  • Large tool tray
  • Precision ball bearing coiler mount
  • Floor locks
  • Wire guide
  • Strong tubular steel frame

Available Options

  • Different HP Available
  • Different Speed Available
  • Many Coiler Size Options
  • Quick Change Coiler/Spooling Mount
  • Spooling Attachments
  • Manual or Powered

Industry-Best Warranty

Every piece of Graham International equipment is backed by our industry-leading warranty.

2-Year Component Warranty Graham International warrants all units and equipment against defects in material and workmanship under normal use and service for 24 months from Invoice Date, including manufacturers components with shorter warranties.
5-Year Craftsmanship Warranty All Graham International equipment carries a 5-year warranty against defects in workmanship. When we say our equipment is built to last, we put the warranty behind it.
Full Warranty Details

Ready to Get a Quote on the C70 Series Powered Coiling Machines?

Our team is ready to help you select the right configuration for your operation — and can design your entire wire room layout.
