C73 Series Powered Coiling Machines with Turntable

American flag Made in USA 2-Year Component / 5-Year Craftsmanship

Specifications

Motor 1 HP High Torque Motor
Variable Speed 0 to 40 RPM
Pull Capacity Pulls from 3,000 lb. reels
Turntable 31" with Wearproof Socket
Measuring Device M200 included
Available Sizes 15", 20", 20" HD collapsible coiler
Finished Coil Weight Up to 140 lbs. (varies by model)
Request a Quote
Call us: (800) 747-2426

About This Equipment

The C73 Series combines powered coiling with a 31" turntable for smooth payout from the source. A 1 HP high torque motor runs at variable speeds from 0 to 40 RPM, pulling from 3,000 lb. reels. The included M200 measuring device reads in feet and inches or meters and tenths of a meter. A Large Tool Tray keeps the operator comfortable and productive. Available in 15", 20", and 20" HD configurations.

Available Models

Model Configuration
C73-15 15" Collapsible Coiler — 100 lb. capacity
C73-20 20" Collapsible Coiler — 120 lb. capacity
C73-20HD Heavy Duty 20" Collapsible Coiler — 140 lb. capacity

Standard Features

  • Variable Speed Only
  • Safety Foot Switch
  • Optimal Working Height
  • Ergonomically placed speed/reverse control panel
  • 1 HP high torque motor
  • Variable Speed 0 to 40 RPM

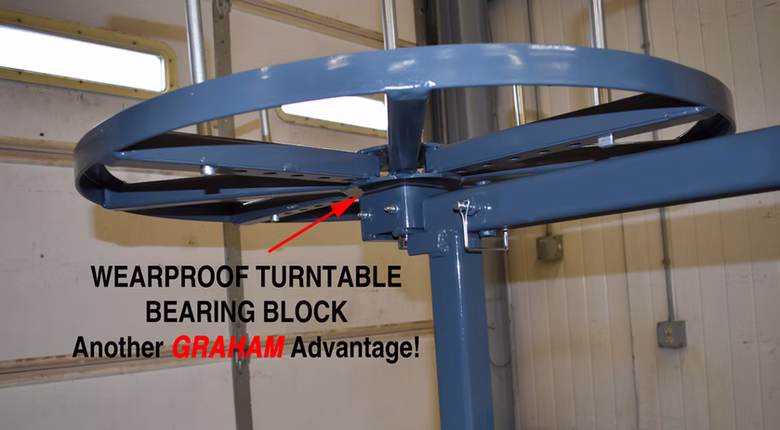

  • 31" turntable with wearproof socket
  • M200 measuring device included
  • Large Tool Tray
  • Precision ball bearing coiler mount
  • Floor locks
  • Strong tubular steel frame

Available Options

  • Different HP Available
  • Different Speed Available
  • Many Coiler Size Options
  • Quick Change Coiler/Spooling Mount
  • Spooling Attachments
  • Manual or Powered
  • Wire Guides

Industry-Best Warranty

Every piece of Graham International equipment is backed by our industry-leading warranty.

2-Year Component Warranty Graham International warrants all units and equipment against defects in material and workmanship under normal use and service for 24 months from Invoice Date, including manufacturers components with shorter warranties.
5-Year Craftsmanship Warranty All Graham International equipment carries a 5-year warranty against defects in workmanship. When we say our equipment is built to last, we put the warranty behind it.
Full Warranty Details

Ready to Get a Quote on the C73 Series Powered Coiling Machines with Turntable?

Our team is ready to help you select the right configuration for your operation — and can design your entire wire room layout.
