C773 Series Heavy Duty Hydraulic Coiling Machines

American flag Made in USA 2-Year Component / 5-Year Craftsmanship

Specifications

Motor 5 HP Hydraulic Drive
Variable Speed 0 to 60 RPM
Pull Capacity Pulls from 5,000 lb. reels
Turntable 31" with Wearproof Socket
Measuring Device M200 included
Available Sizes 15", 20", 20" HD collapsible coiler
Finished Coil Weight Up to 140 lbs. (varies by model)
Request a Quote
Call us: (800) 747-2426

About This Equipment

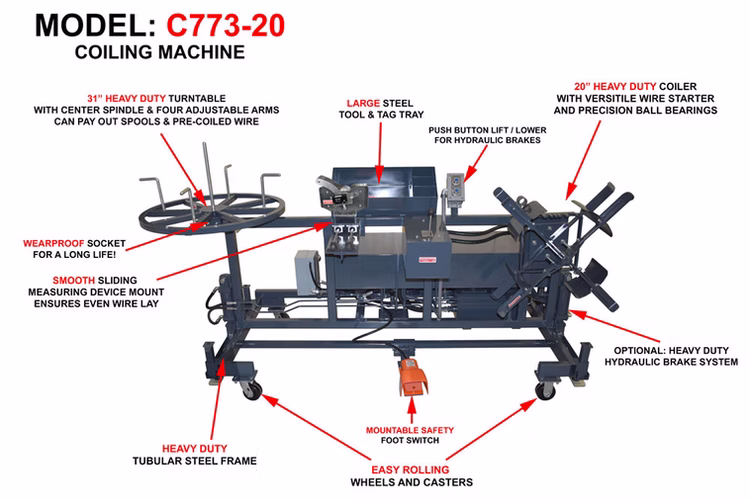

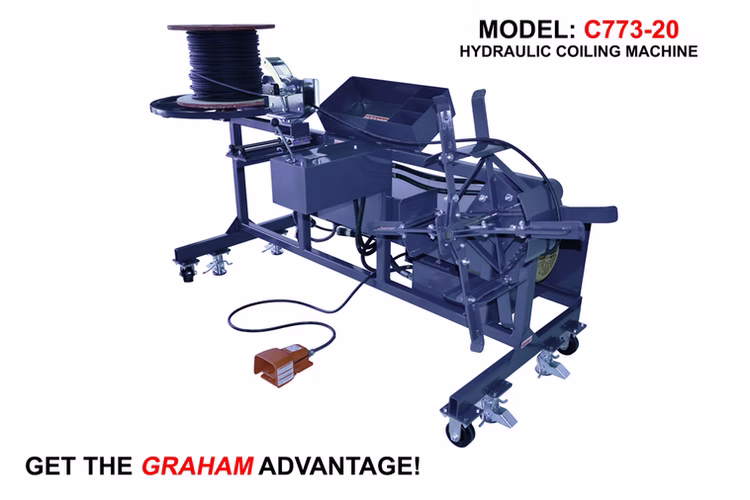

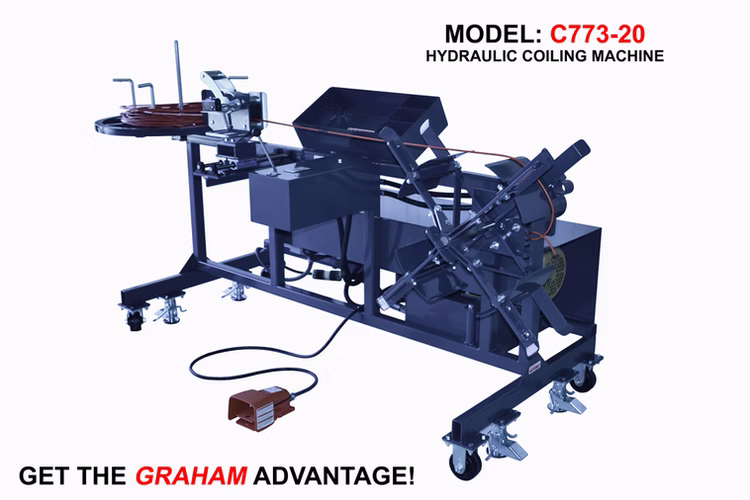

The C773 Series is our heavy-duty hydraulic coiling machine for the most demanding operations. Powered by a 5 HP hydraulic drive with variable speed from 0 to 60 RPM, it pulls from 5,000 lb. reels. A 31" turntable with wearproof socket and included M200 measuring device make this machine a complete coiling station. Ergonomically placed speed control, steel tool tray, floor locks, and precision ball bearing coiler mount. Available in 15", 20", and 20" HD configurations.

Available Models

Model Configuration
C773-15 15" Collapsible Coiler — 100 lb. capacity
C773-20 20" Collapsible Coiler — 120 lb. capacity
C773-20HD Heavy Duty 20" Collapsible Coiler — 140 lb. capacity

Standard Features

  • 5 HP hydraulic drive

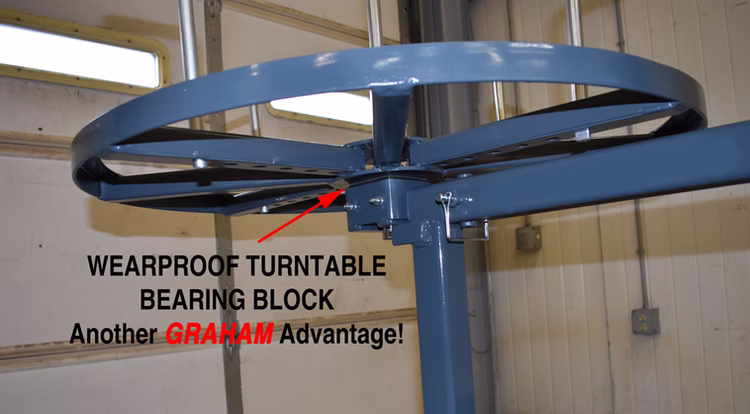

  • 31" turntable with wearproof socket
  • M200 measuring device included
  • Ergonomically placed speed control
  • Steel tool tray (standard)
  • Precision ball bearing coiler mount
  • Floor locks
  • Strong tubular steel frame

Available Options

  • Stop to Length
  • Different HP options
  • Different speed options
  • Many coiler size options
  • Quick change coiler/spooling mount
  • Spooling attachments
  • Wire guides

Industry-Best Warranty

Every piece of Graham International equipment is backed by our industry-leading warranty.

2-Year Component Warranty Graham International warrants all units and equipment against defects in material and workmanship under normal use and service for 24 months from Invoice Date, including manufacturers components with shorter warranties.
5-Year Craftsmanship Warranty All Graham International equipment carries a 5-year warranty against defects in workmanship. When we say our equipment is built to last, we put the warranty behind it.
Full Warranty Details

Ready to Get a Quote on the C773 Series Heavy Duty Hydraulic Coiling Machines?

Our team is ready to help you select the right configuration for your operation — and can design your entire wire room layout.
