H8P Reel Payout Machine

American flag Made in USA 2-Year Component / 5-Year Craftsmanship

Specifications

Lift Type Push Button Hydraulic Lift/Lower
Lift Capacity 8,000 lb.
Reel Capacity 84" Diameter x 48" Wide
Cylinders Double Acting - powered up and down
Safety Valve Yes
Power 220 Volt Single Phase
Request a Quote
Call us: (800) 747-2426

About This Equipment

The H8P is a heavy-duty payout machine with push-button hydraulic lift and lower capability. With 8,000 lb. lift capacity and double-acting cylinders powered up and down, it handles reels up to 84" diameter by 48" wide (alternate configuration: 96" diameter by 54" wide). A safety valve protects against overloading. Runs on 220 volt single phase power. Wearproof axle saddles and adjustable floor lock brakes are standard.

Standard Features

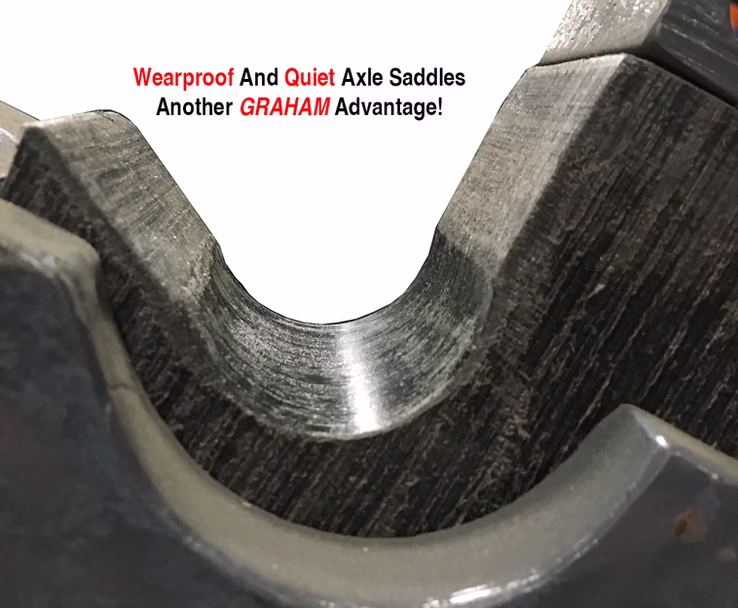

  • Wearproof axle saddles
  • Push-button hydraulic lift and lower
  • Double acting cylinders — powered up and down
  • Safety valve — reels cannot drift down once raised
  • Adjustable floor lock brakes
  • Easy rolling wheels and casters
  • Solid steel reel adapter bushings & storage
  • Heavy-duty tubular steel frame
  • 220 Volt single phase

Available Options

  • Power Assist
  • Dancer Tension Control
  • Wire Guides
  • Extra Shelves for Tools, Printers and Devices
  • 120V Power Outlets

Industry-Best Warranty

Every piece of Graham International equipment is backed by our industry-leading warranty.

2-Year Component Warranty Graham International warrants all units and equipment against defects in material and workmanship under normal use and service for 24 months from Invoice Date, including manufacturers components with shorter warranties.
5-Year Craftsmanship Warranty All Graham International equipment carries a 5-year warranty against defects in workmanship. When we say our equipment is built to last, we put the warranty behind it.
Full Warranty Details

Ready to Get a Quote on the H8P Reel Payout Machine?

Our team is ready to help you select the right configuration for your operation — and can design your entire wire room layout.
