H8T Series Reel Takeup Machines

American flag Made in USA 2-Year Component / 5-Year Craftsmanship

Specifications

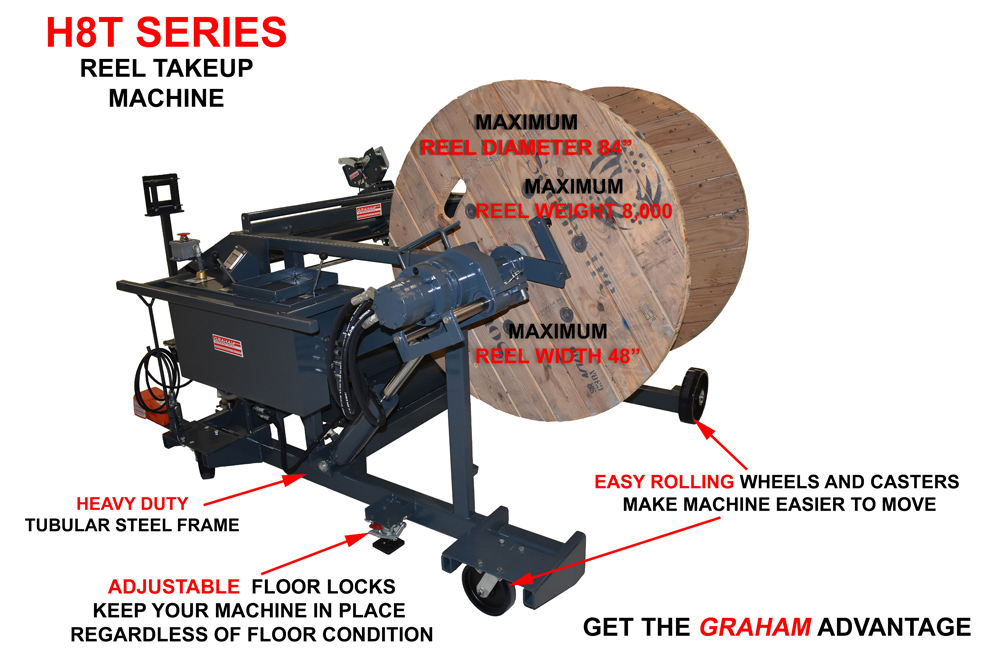

Lift Capacity 8,000 lb.
Reel Capacity 84" Diameter x 48" Wide
Variable Speed 0 to 60 RPM
Brake Motor Tension Holding, rated for 10,000 lb. pull and above
Pulling Range 6,000 lb. to 40,000 lb.
Request a Quote
Call us: (800) 747-2426

About This Equipment

The H8T Series handles heavier reels up to 84" diameter by 48" wide with 8,000 lb. lift capacity. Built for operations that push beyond standard wire handling demands, these machines deliver the same reliable performance as every Graham International takeup — wearproof axle saddles, tension-holding brake motors, variable speed control, and rock-solid tubular steel construction. Six configurations available from 6,000 to 40,000 lb. pulling capacity.

See It In Action

Available Models

Model Configuration
H8T6 6,000 LB Pull
H8T8 8,000 LB Pull
H8T10 10,000 LB Pull
H8T20 20,000 LB Pull
H8T30 30,000 LB Pull
H8T40 40,000 LB Pull

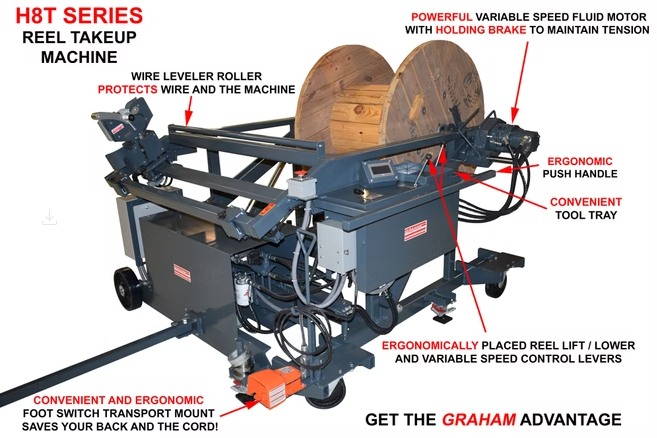

Standard Features

  • Wearproof axle saddles

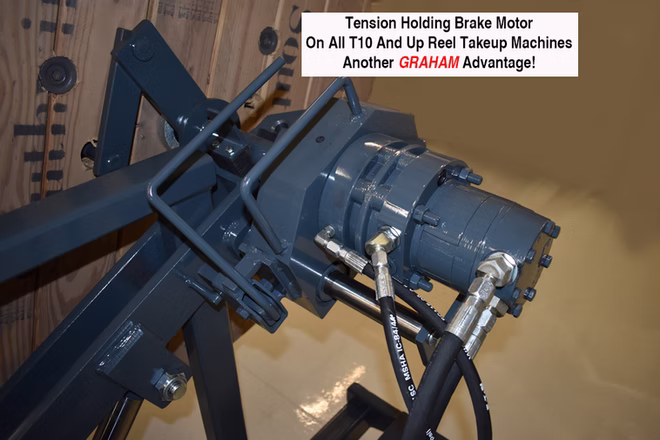

  • Tension-holding brake motor
  • Easy rolling wheels and casters
  • Adjustable floor lock brakes
  • Heavy-duty tubular steel frame construction
  • Large steel tool tray
  • Axle shaft storage
  • Solid steel reel adapter bushing storage
  • Power Wire Traverse ** INCLUDED! **
  • All Hydraulic Functions
  • Dynamic Braking on Reel Drive
  • Conveniently Placed Lever Controls
  • Linear Slide Mounted High Torque Motor
  • Double Acting Cylinders - Powered Up & Down
  • Safety Valve so Reels Cannot Drift Down once raised
  • Hand Operated Linear Wire Traverse (Level Wind)
  • Two Sets of Reel Adapter Bushings
  • Safety foot switch & transport mount
  • 240/480 Volt 3 Phase

Available Options

  • Stop to Length
  • Automatic Wire Traverse
  • Measuring Devices
  • Paralleling Wire Guides
  • Collapsible Coilers
  • Stretch Wrap Dispenser Mount
  • Paralleling Reels
  • Extra Shelves for Tools, Printers and Devices
  • 120v Power Outlets

Industry-Best Warranty

Every piece of Graham International equipment is backed by our industry-leading warranty.

2-Year Component Warranty Graham International warrants all units and equipment against defects in material and workmanship under normal use and service for 24 months from Invoice Date, including manufacturers components with shorter warranties.
5-Year Craftsmanship Warranty All Graham International equipment carries a 5-year warranty against defects in workmanship. When we say our equipment is built to last, we put the warranty behind it.
