H10T Series Reel Takeup Machines

American flag Made in USA 2-Year Component / 5-Year Craftsmanship

Specifications

Lift Capacity 10,000 lb.
Reel Capacity 96" Diameter x 52" Wide
Variable Speed 0 to 60 RPM
Brake Motor Tension Holding, rated for 10,000 lb. pull and above
Pulling Range 6,000 lb. to 40,000 lb.
Request a Quote
Call us: (800) 747-2426

About This Equipment

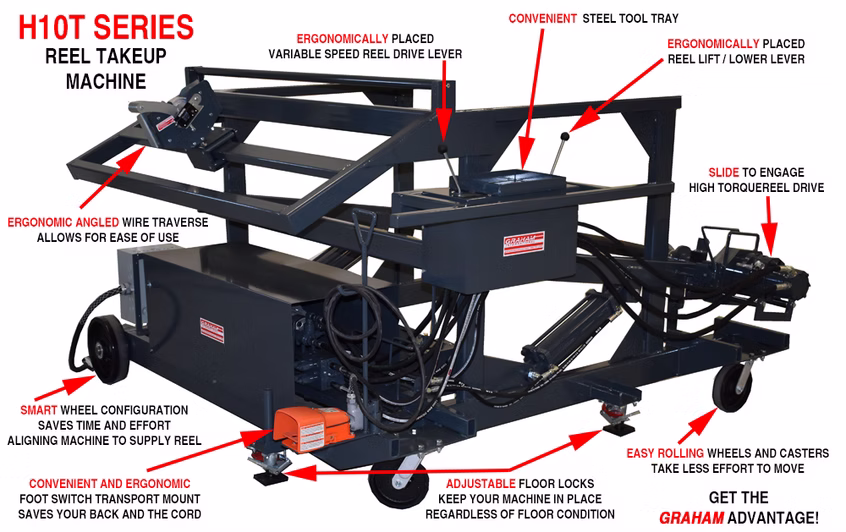

The H10T Series is our highest-capacity standard takeup machine, handling reels up to 96" diameter by 54" wide with 10,000 lb. lift capacity. When your wire and cable operations demand maximum capacity, the H10T delivers with tension-holding brake motors, wearproof axle saddles, and the heavy-duty construction Graham International is known for. Six pulling capacity configurations from 6,000 to 40,000 lb. ensure you get exactly the machine your operation needs.

See It In Action

Available Models

Model Configuration
H10T6 6,000 LB Pull
H10T8 8,000 LB Pull
H10T10 10,000 LB Pull
H10T20 20,000 LB Pull
H10T30 30,000 LB Pull
H10T40 40,000 LB Pull

Standard Features

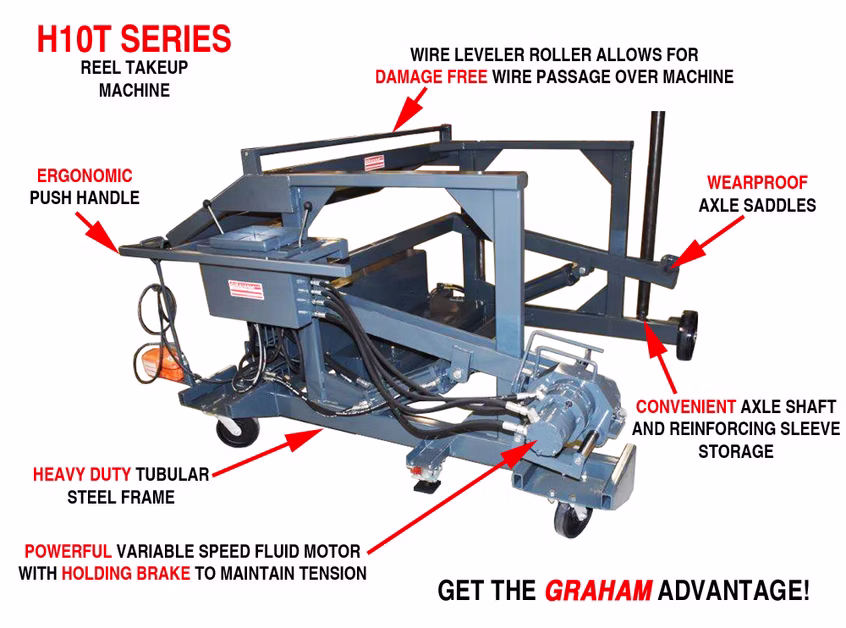

  • Wearproof axle saddles

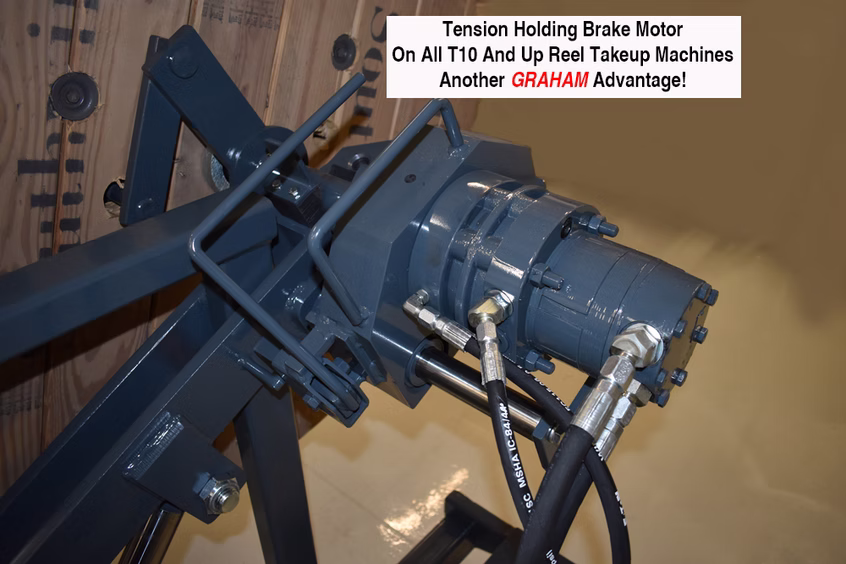

  • Tension-holding brake motor
  • Easy rolling wheels and casters
  • Adjustable floor lock brakes
  • Heavy-duty tubular steel frame construction
  • Large steel tool tray
  • Axle shaft storage
  • Solid steel reel adapter bushing storage
  • Power Wire Traverse ** INCLUDED! **
  • All Hydraulic Functions
  • Dynamic Braking on Reel Drive
  • Conveniently Placed Lever Controls
  • Linear Slide Mounted High Torque Motor
  • Double Acting Cylinders - Powered Up & Down
  • Safety Valve so Reels Cannot Drift Down once raised
  • Hand Operated Linear Wire Traverse (Level Wind)
  • Two Sets of Reel Adapter Bushings

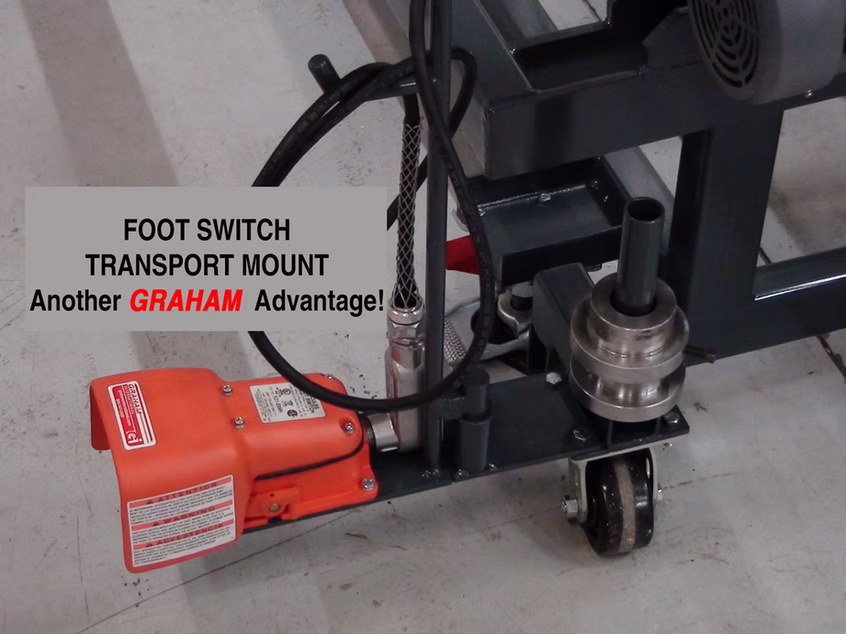

  • Safety foot switch & transport mount
  • 240/480 Volt 3 Phase

Available Options

  • Stop to Length
  • Automatic Wire Traverse
  • Measuring Devices
  • Paralleling Wire Guides
  • Collapsible Coilers
  • Paralleling Reels
  • 120 Volt Power Outlets
  • Extra Shelves for Tools, Printers and Devices
  • Stretch Wrap Dispenser Mount

Industry-Best Warranty

Every piece of Graham International equipment is backed by our industry-leading warranty.

2-Year Component Warranty Graham International warrants all units and equipment against defects in material and workmanship under normal use and service for 24 months from Invoice Date, including manufacturers components with shorter warranties.
5-Year Craftsmanship Warranty All Graham International equipment carries a 5-year warranty against defects in workmanship. When we say our equipment is built to last, we put the warranty behind it.
