Model E125T20 Shaftless Automated Self-Propelled Takeup

American flag Made in USA 2-Year Component / 5-Year Craftsmanship

Specifications

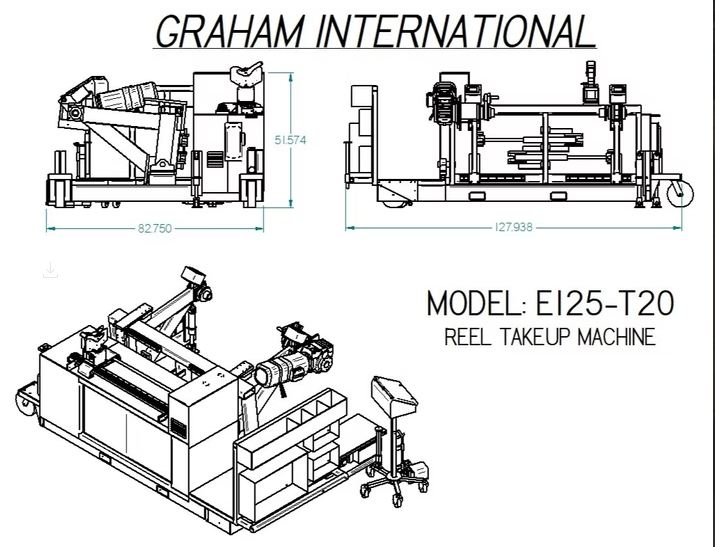

Reel Capacity 60" Diameter x 34" Wide x 10,000 lb.
Pulling Capacity 20,000 LB (configurations from 6,000 to 40,000 LB)
Type Shaftless, Automated, Self-Propelled
Control HMI Controlled
Request a Quote
Call us: (800) 747-2426

About This Equipment

The E125T20 represents the pinnacle of Graham International takeup technology. This shaftless, automated, self-propelled takeup machine features HMI control for precise operation, stop-to-length capability, automatic wire traverse, and automatic floor lock brakes. Handling reels up to 60" diameter by 34" wide and 10,000 lbs., with 20,000 lb. standard pulling capacity (configurations available from 6,000 to 40,000 lb.), it delivers fully automated takeup performance. Self-propelled using 2 joysticks for zero-turn capability, this machine is highly maneuverable and includes a measuring device.

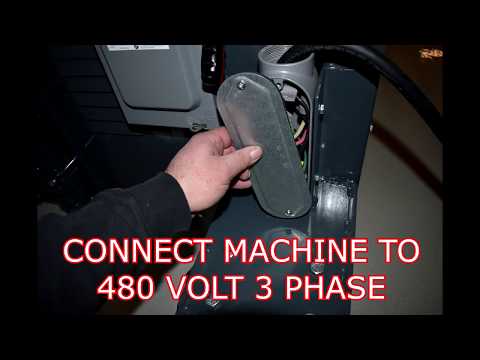

See It In Action

Available Models

Model Configuration
E125T10 10,000 LB Pull
E125T20 20,000 LB Pull
E125T40 40,000 LB Pull

Standard Features

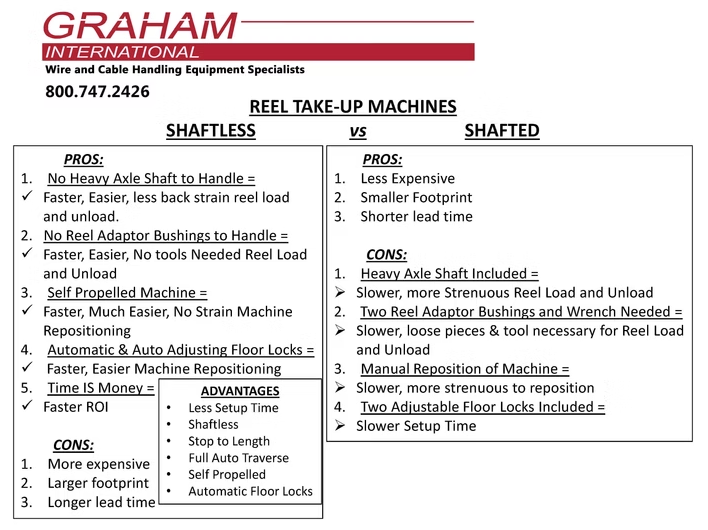

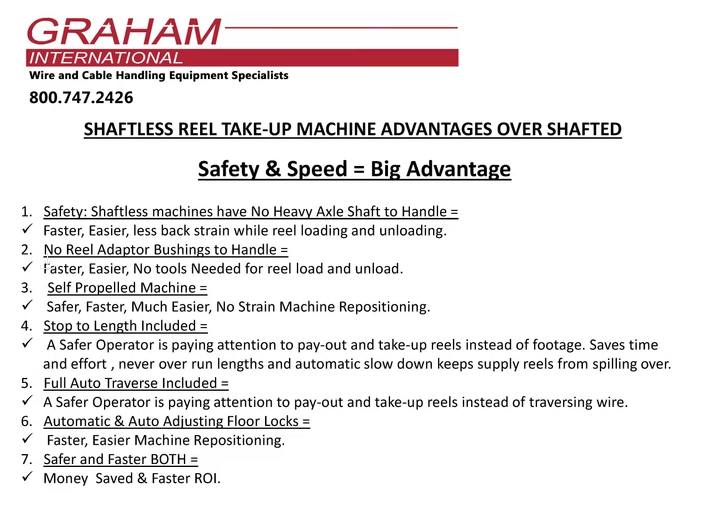

  • Shaftless

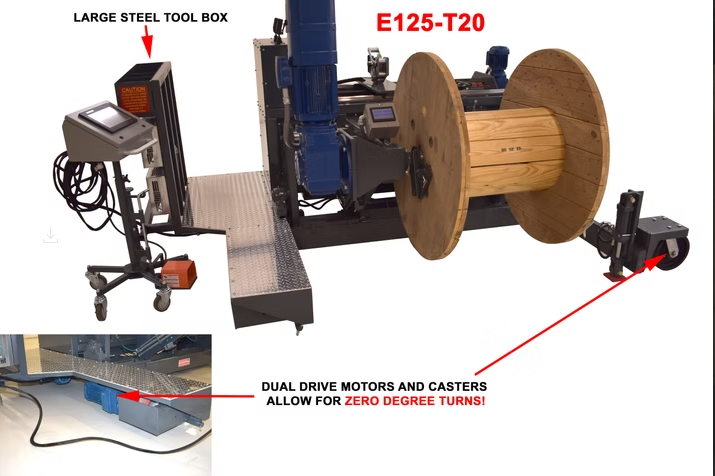

  • Self Propelled - Dual Joy Stick Controlled - Zero Turn
  • Holding Brake Motor - Maintains Tension

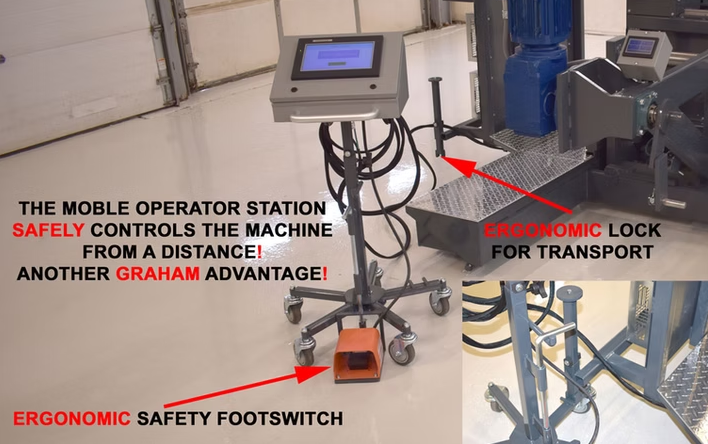

  • Mobile Operator Station - "MOS"
  • HMI Controlled
  • Safety Foot Switch Transported In MOS
  • Automatic Floor Lock Brakes
  • Easy Rolling Wheels and Casters
  • Large Steel Tool Trays
  • Solid Steel Reel Adapter Bushings & Storage
  • Heavy Duty Tubular Steel Frame
  • Electric Mechanical Reel Drive HMI Controlled
  • Dynamic Braking on Reel Drive
  • Holding Brake on Reel Drive Motor
  • Adjustable Height HMI Control on MOS
  • Variable Speed 0 to 60 RPM
  • Stop To Length
  • Automatic Wire Traverse
  • Measuring Device
  • Double Acting Cylinders - Powered Up & Down
  • Safety Valve so Reels Cannot Drift Down once raised
  • Power Wire Traverse (Level Wind)
  • Two Sets of Reel Adapter Bushings
  • 240/480 Volt 3 Phase - Please Advise

Available Options

  • Paralleling Wire Guides
  • Stretch Wrap Dispenser Mount
  • Paralleling Reels
  • Extra Shelves for Tools, Printers and Devices
  • 120v Power Outlets

Industry-Best Warranty

Every piece of Graham International equipment is backed by our industry-leading warranty.

2-Year Component Warranty Graham International warrants all units and equipment against defects in material and workmanship under normal use and service for 24 months from Invoice Date, including manufacturers components with shorter warranties.
5-Year Craftsmanship Warranty All Graham International equipment carries a 5-year warranty against defects in workmanship. When we say our equipment is built to last, we put the warranty behind it.
Full Warranty Details

Ready to Get a Quote on the Model E125T20 Shaftless Automated Self-Propelled Takeup?

Our team is ready to help you select the right configuration for your operation — and can design your entire wire room layout.
