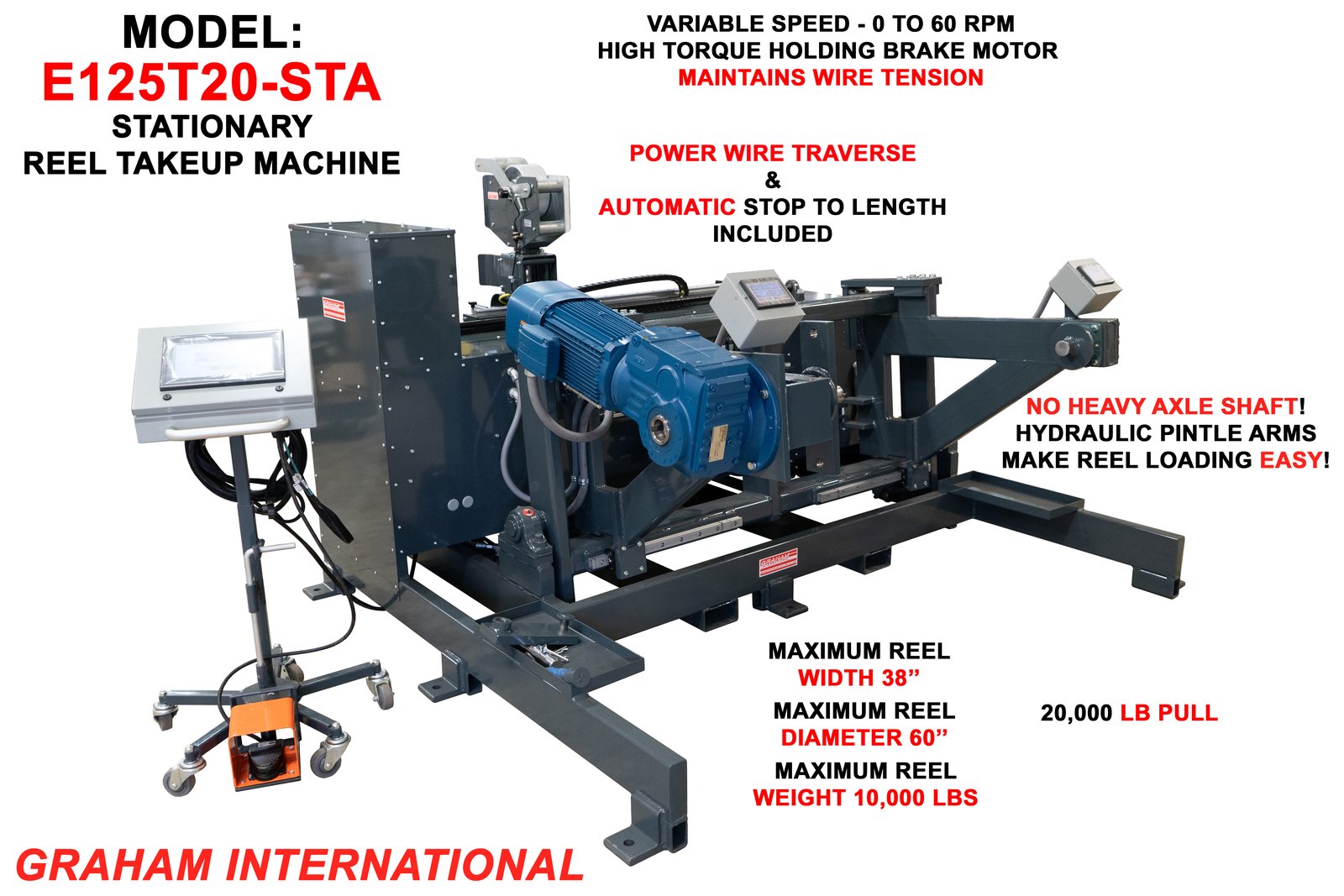

Model E125T20-STA Shaftless Automated Stationary Takeup

American flag Made in USA 2-Year Component / 5-Year Craftsmanship

Specifications

Reel Capacity 60" Diameter x 38" Wide x 10,000 lb.
Pulling Capacity 20,000 LB (configurations from 6,000 to 40,000 LB)
Variable Speed 0 to 60 RPM
Type Shaftless, Automated, Stationary (Floor-Mounted)
Reel Loading Hydraulic Pintle Arms — No Heavy Axle Shaft
Control HMI Controlled via Mobile Operator Station
Request a Quote
Call us: (800) 747-2426

About This Equipment

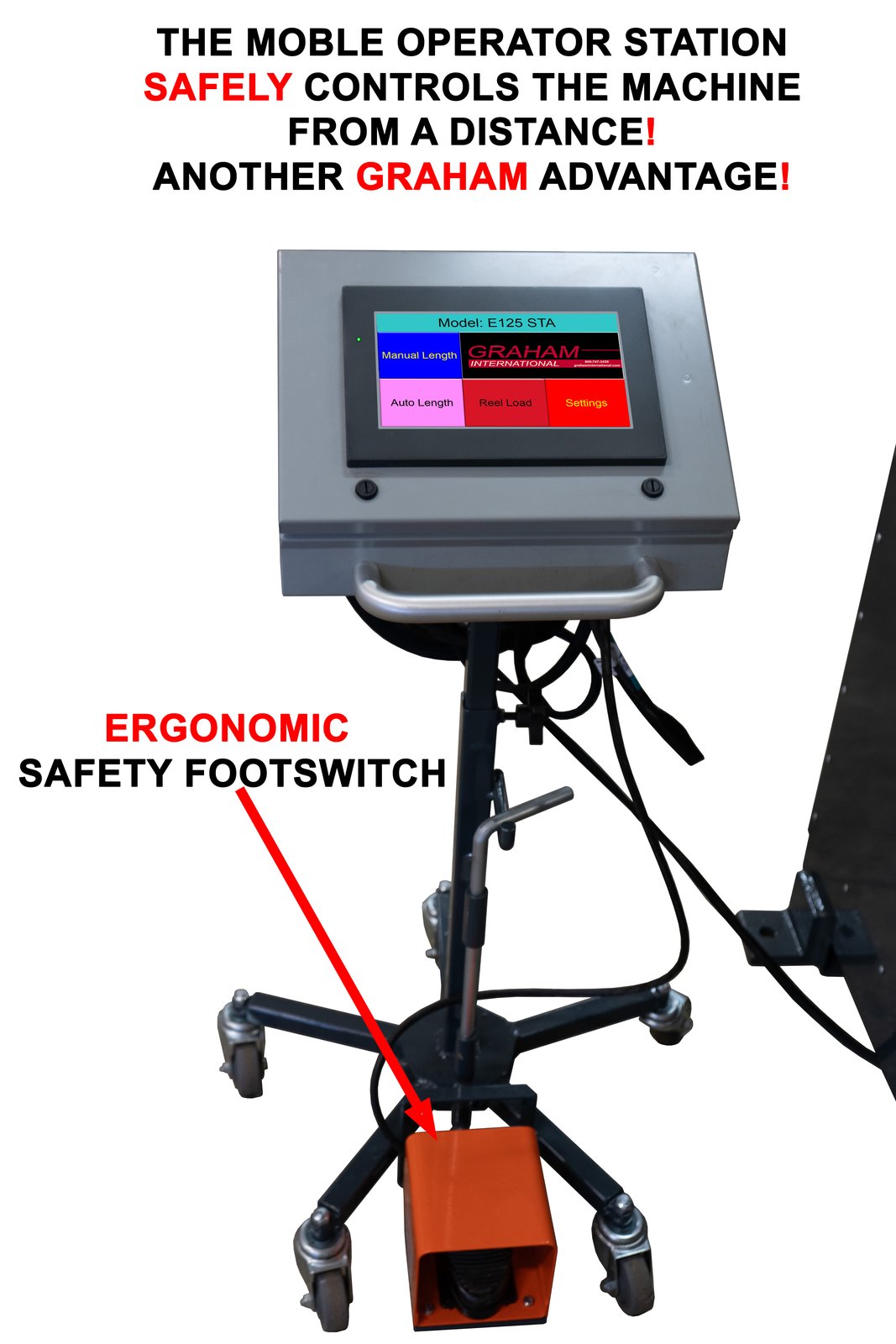

The E125T20-STA is the stationary, floor-mounted version of Graham International's flagship E125 shaftless automated takeup. It delivers the same fully automated, HMI-controlled performance as the self-propelled E125T20 — 20,000 lb. pulling capacity, variable speed from 0 to 60 RPM, power wire traverse, and automatic stop-to-length — in a bolt-to-floor configuration built for fixed production positions. Hydraulic pintle arms load reels up to 60" diameter by 38" wide and 10,000 lbs. with no heavy axle shaft to handle. A wheeled Mobile Operator Station puts the HMI touchscreen and an ergonomic safety footswitch at the operator's fingertips, safely controlling the machine from a distance. A measuring device is included, and pulling configurations are available from 6,000 to 40,000 lb.

Standard Features

  • Shaftless — No Heavy Axle Shaft to Handle
  • Stationary / Floor-Mounted — Bolts to the Floor
  • Hydraulic Pintle Arms Make Reel Loading Easy
  • Mobile Operator Station — Controls the Machine Safely From a Distance
  • HMI Touchscreen Control
  • Ergonomic Safety Footswitch
  • High Torque Holding Brake Motor — Maintains Wire Tension
  • Variable Speed 0 to 60 RPM
  • Power Wire Traverse (Level Wind)
  • Automatic Stop To Length
  • Measuring Device Included
  • Electric Mechanical Reel Drive — HMI Controlled
  • Dynamic Braking on Reel Drive
  • Heavy Duty Tubular Steel Frame
  • Solid Steel Reel Adapter Bushings & Storage
  • Large Steel Tool Trays
  • 240/480 Volt 3 Phase — Please Advise

Available Options

  • Paralleling Wire Guides
  • Stretch Wrap Dispenser Mount
  • Paralleling Reels
  • Extra Shelves for Tools, Printers and Devices
  • 120v Power Outlets

Industry-Best Warranty

Every piece of Graham International equipment is backed by our industry-leading warranty.

2-Year Component Warranty Graham International warrants all units and equipment against defects in material and workmanship under normal use and service for 24 months from Invoice Date, including manufacturers components with shorter warranties.
5-Year Craftsmanship Warranty All Graham International equipment carries a 5-year warranty against defects in workmanship. When we say our equipment is built to last, we put the warranty behind it.
Full Warranty Details

Ready to Get a Quote on the Model E125T20-STA Shaftless Automated Stationary Takeup?

Our team is ready to help you select the right configuration for your operation — and can design your entire wire room layout.
