H6T Series Reel Takeup Machines

American flag Made in USA 2-Year Component / 5-Year Craftsmanship

Specifications

Lift Capacity 6,000 lb.
Reel Capacity 72" Diameter x 42" Wide
Variable Speed 0 to 60 RPM
Brake Motor Tension Holding, rated for 10,000 lb. pull and above
Pulling Range 6,000 lb. to 40,000 lb.
Request a Quote
Call us: (800) 747-2426

About This Equipment

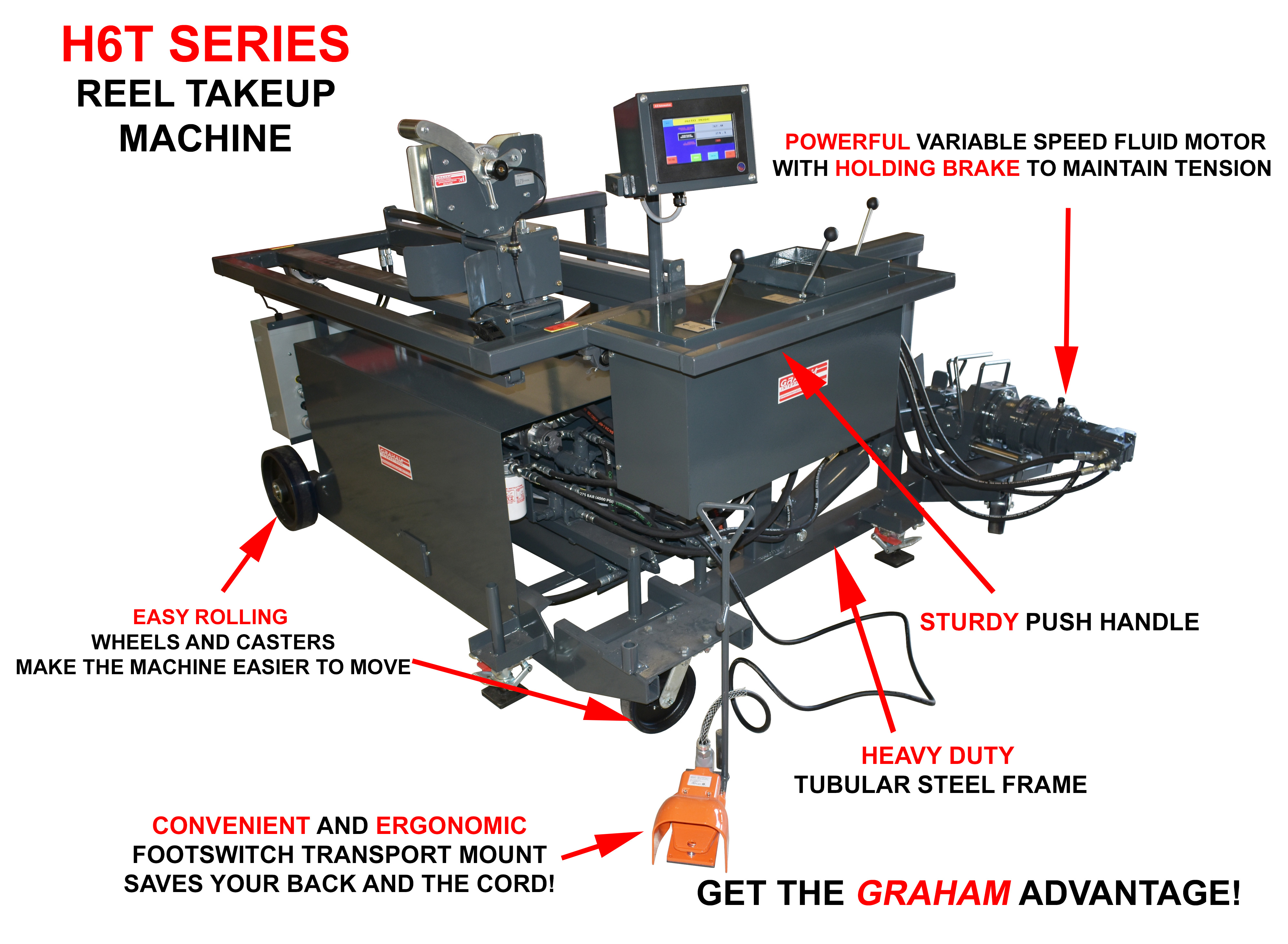

The H6T Series is our mid-range workhorse for wire and cable takeup operations. With 6,000 lb. lift capacity and reel handling up to 72" diameter by 42" wide, these machines cover the majority of wire and cable handling needs. Tension-holding brake motors rated for 10,000 lb. pull and above ensure consistent tension throughout the takeup process. Variable speed from 0 to 60 RPM gives operators precise control. Six pulling capacity configurations available from 6,000 to 40,000 lb.

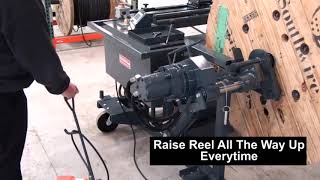

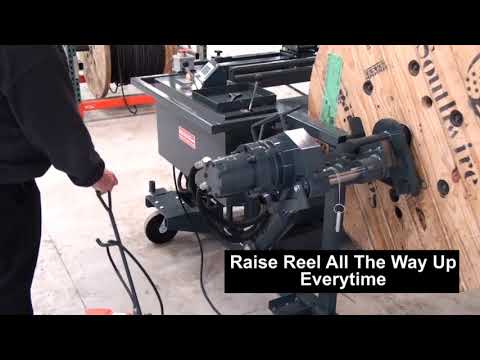

See It In Action

Available Models

Model Configuration
H6T6 6,000 LB Pull
H6T8 8,000 LB Pull
H6T10 10,000 LB Pull
H6T20 20,000 LB Pull
H6T30 30,000 LB Pull
H6T40 40,000 LB Pull

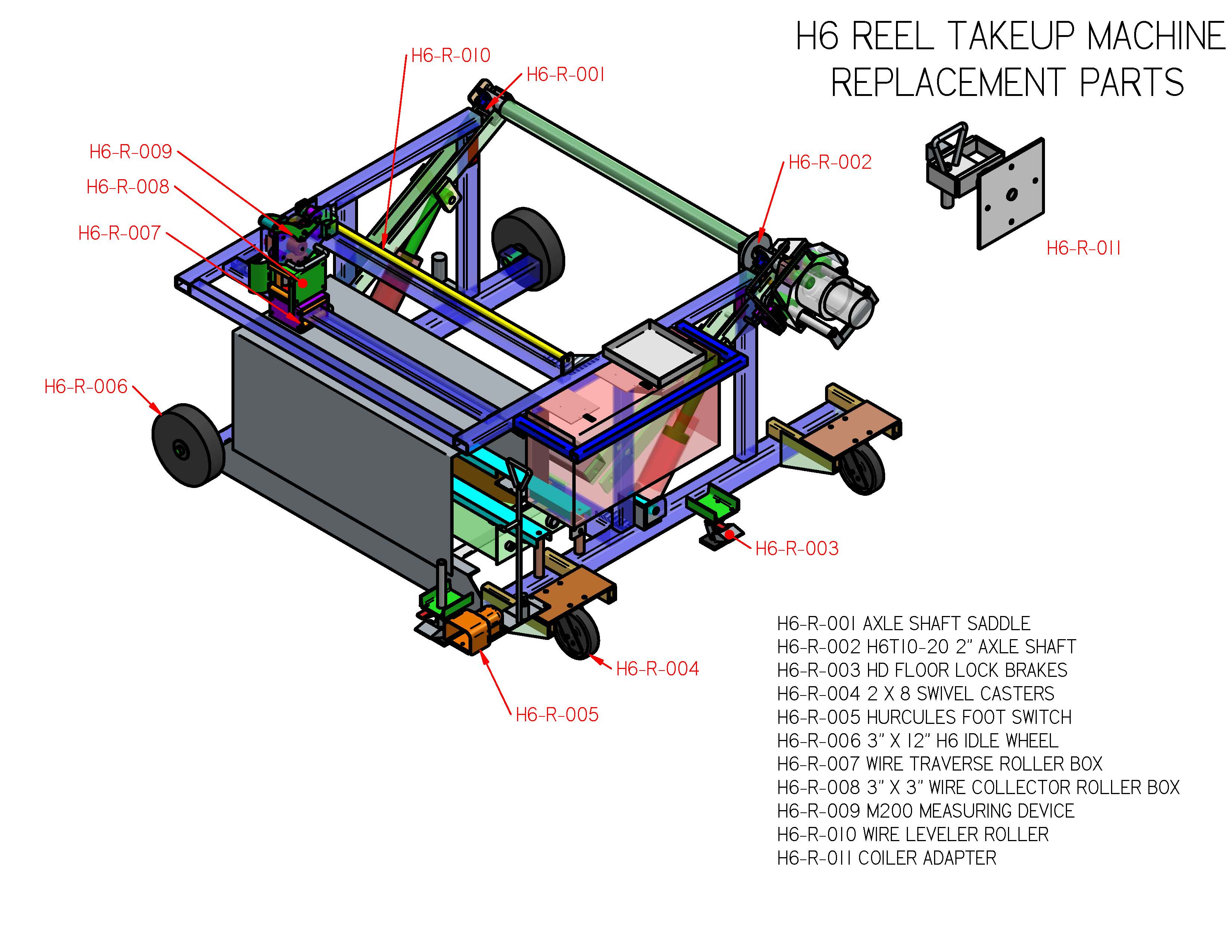

Standard Features

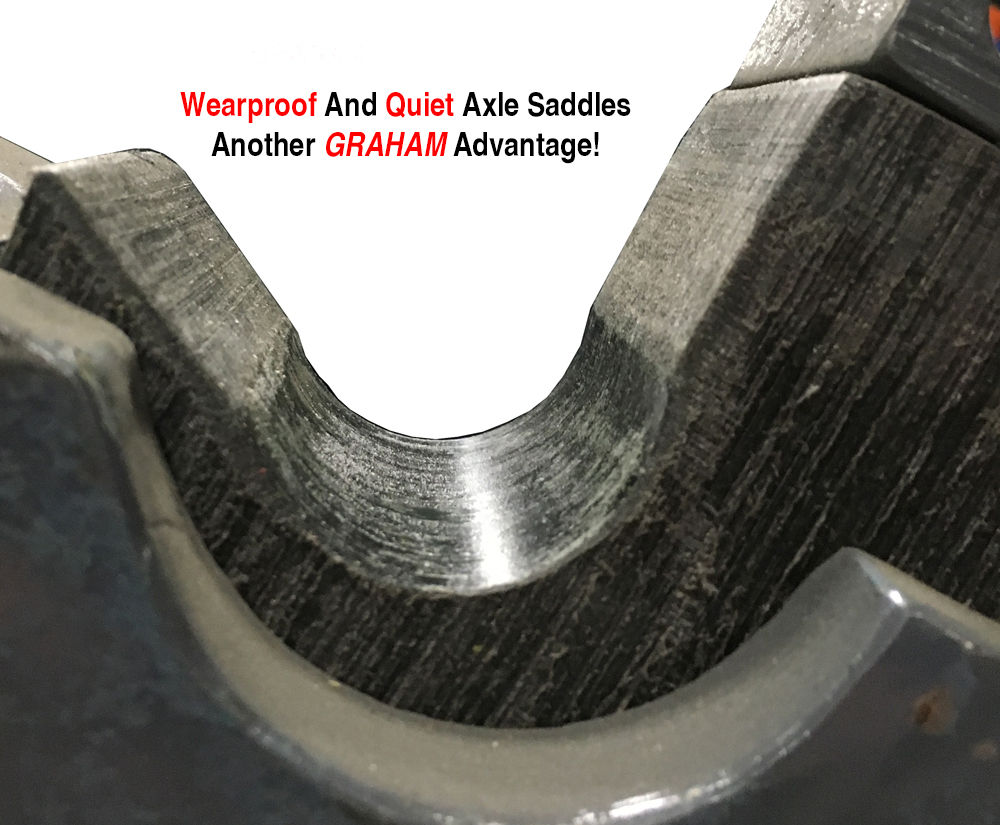

  • Wearproof axle saddles

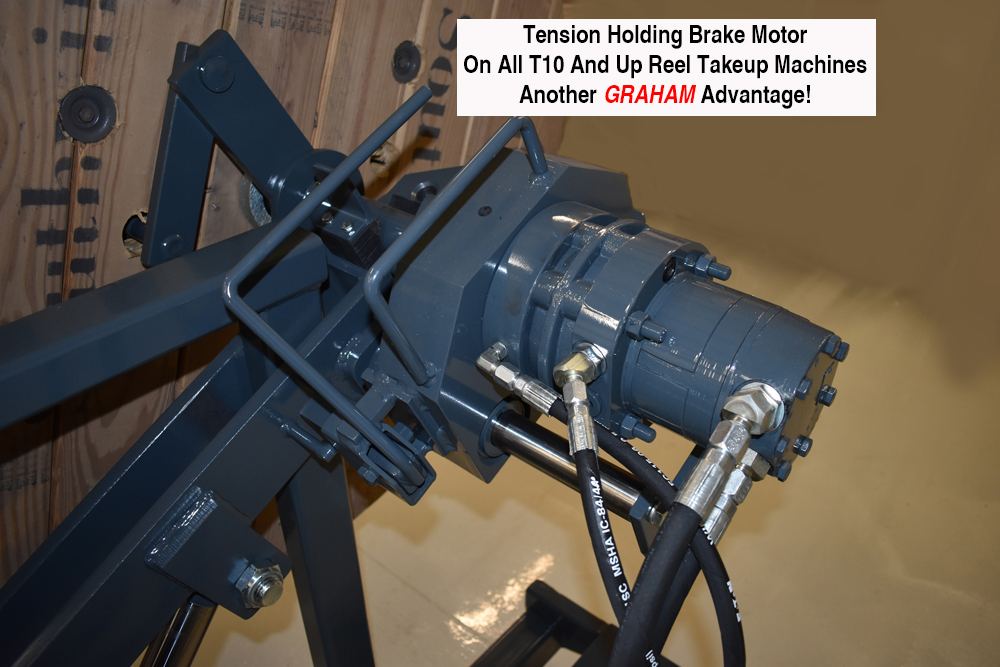

  • Tension-holding brake motor

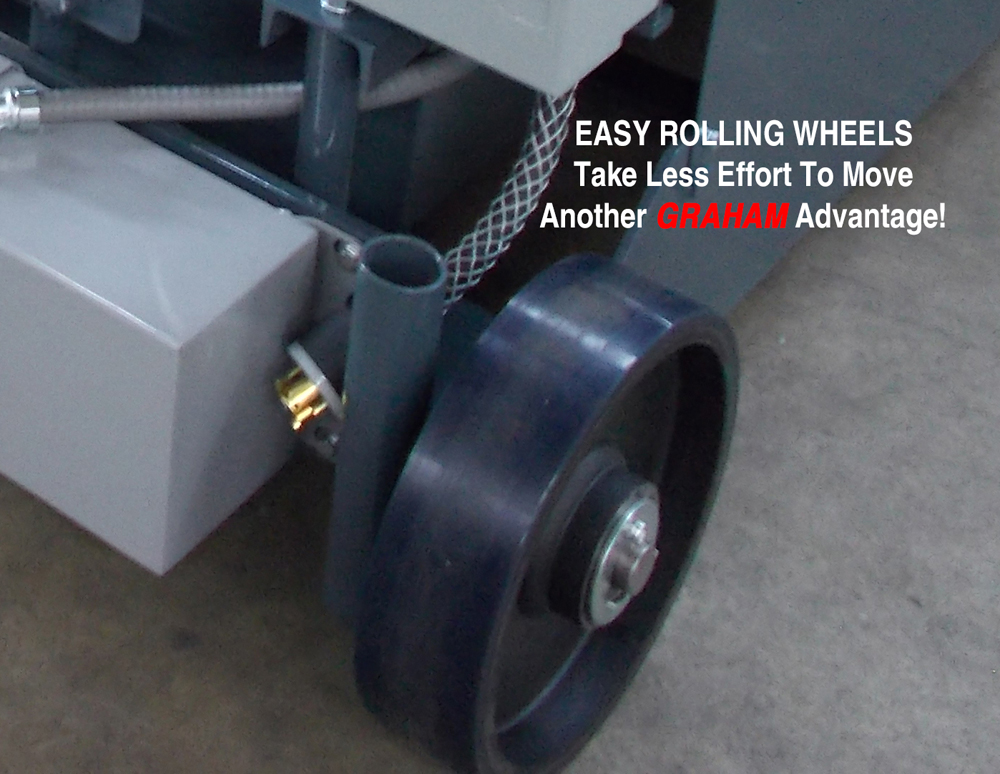

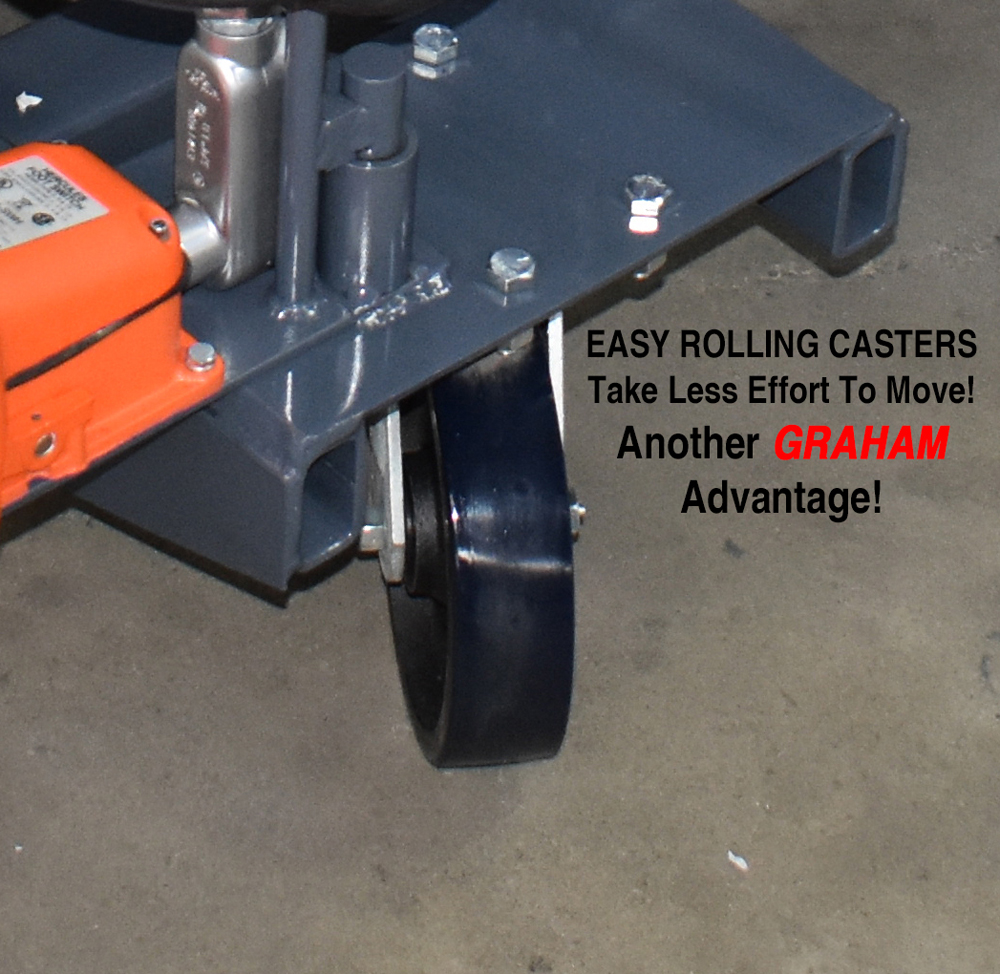

  • Easy rolling wheels and casters
  • Adjustable floor lock brakes
  • Heavy-duty tubular steel frame construction

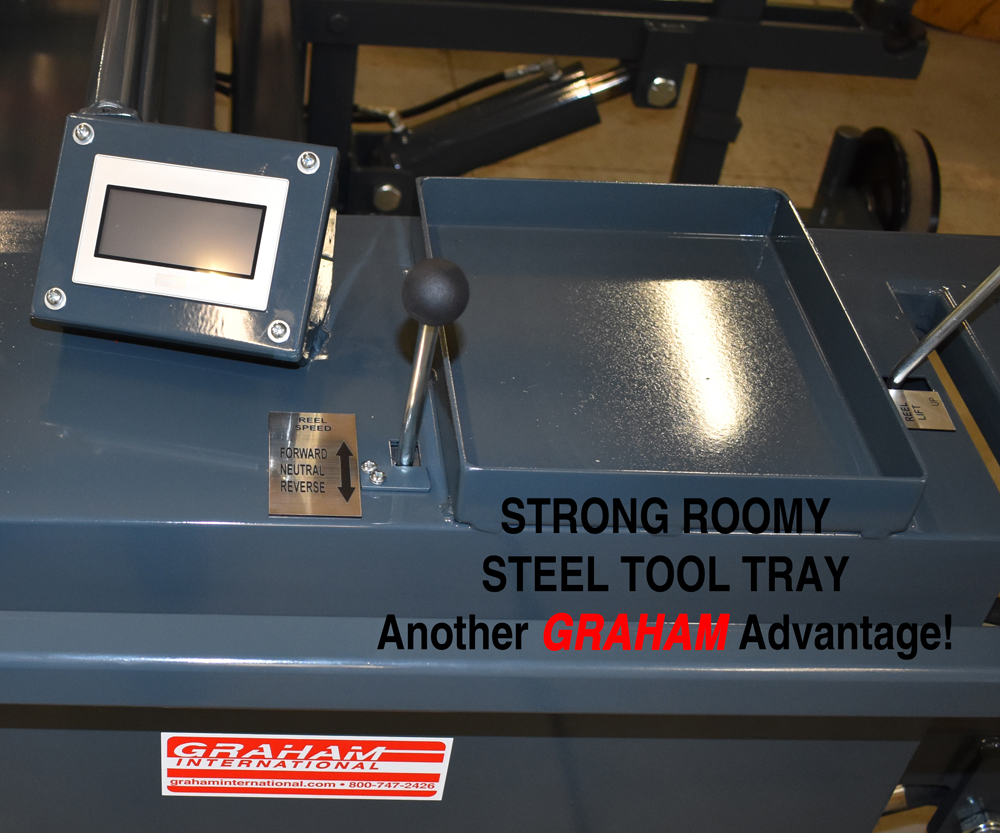

  • Large steel tool tray

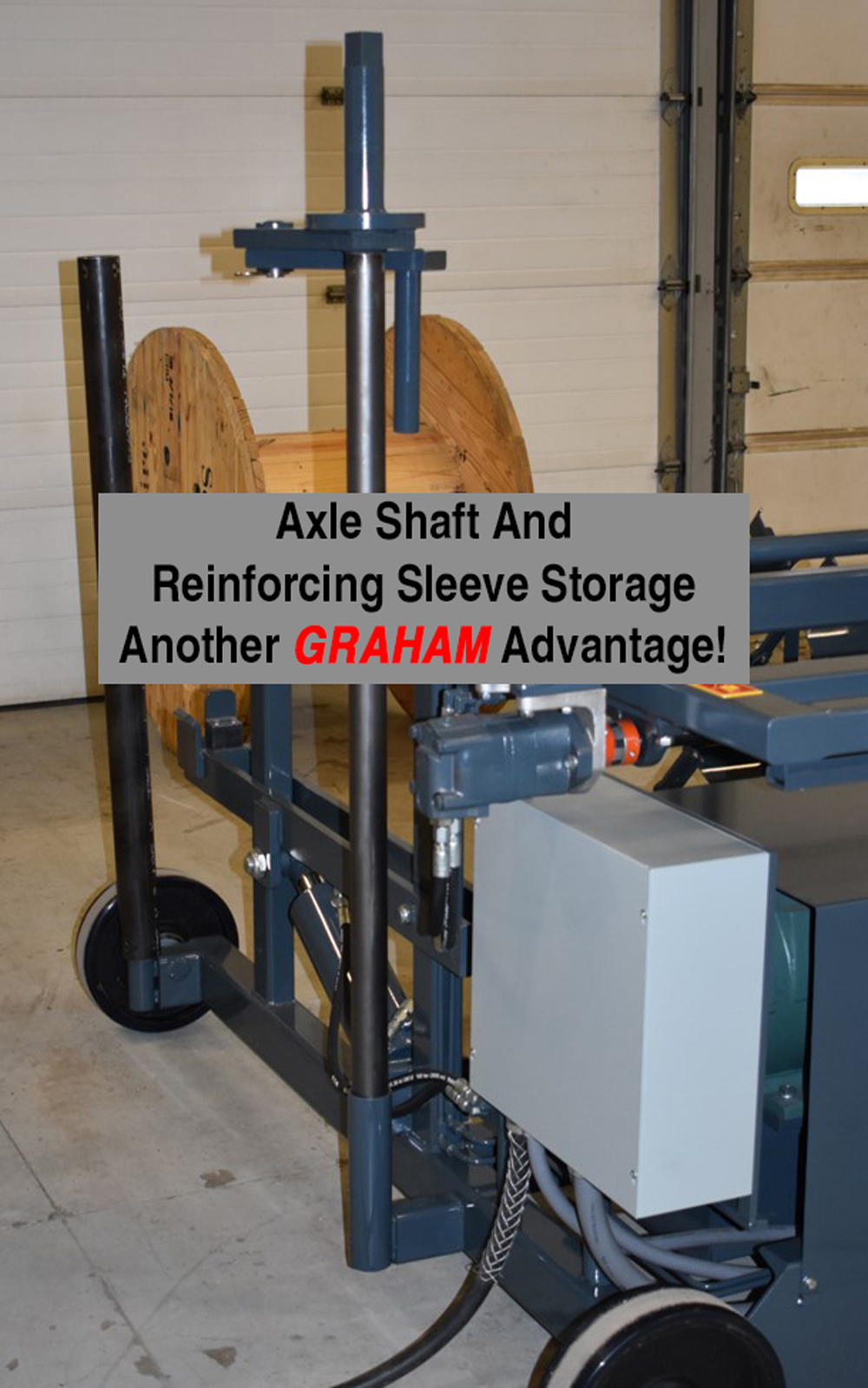

  • Axle shaft storage

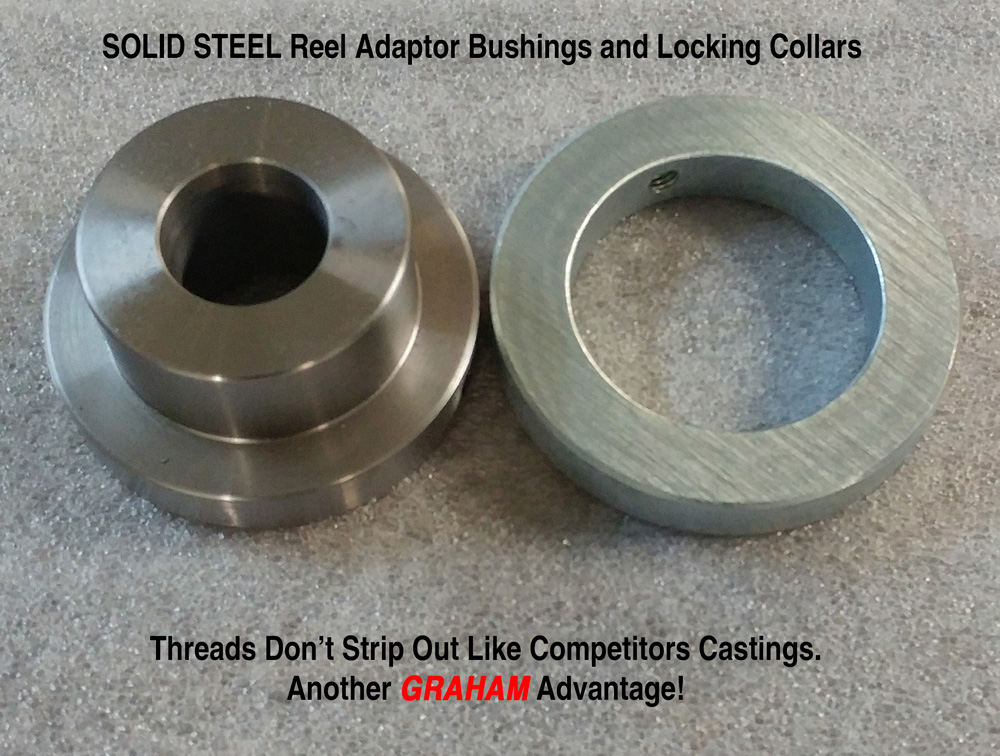

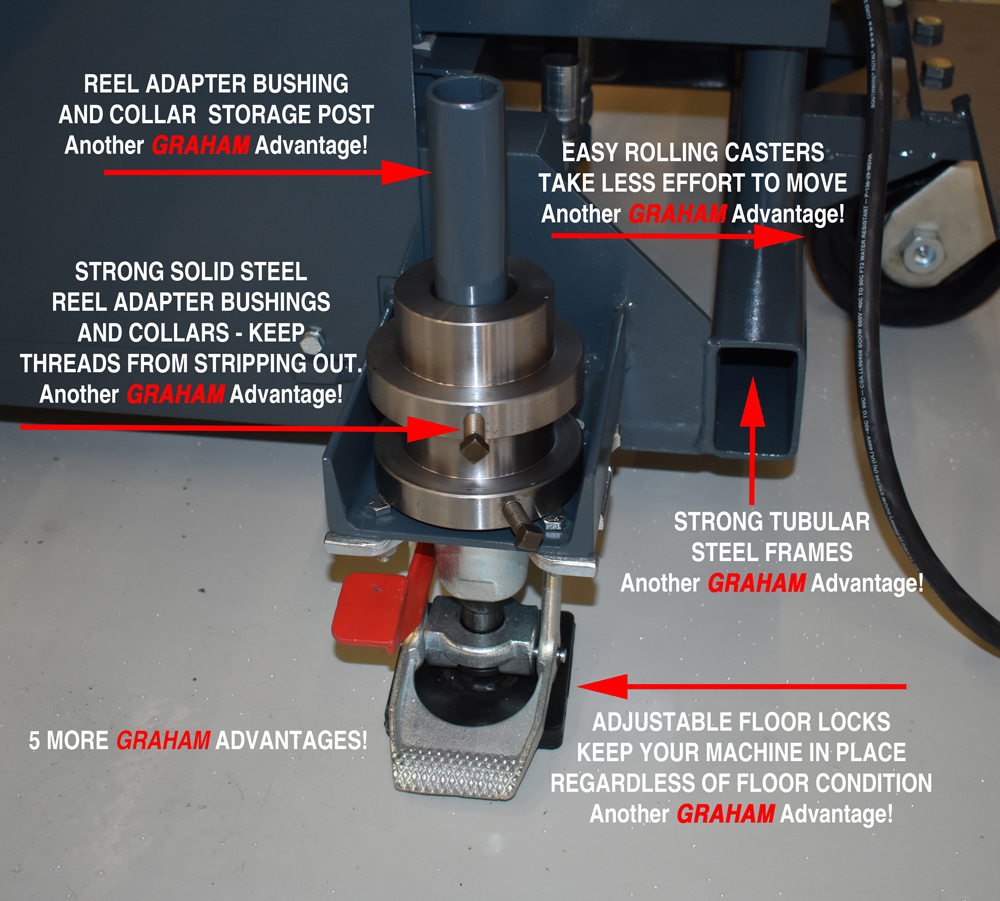

  • Solid steel reel adapter bushing storage
  • All Hydraulic Functions
  • Dynamic Braking on Reel Drive

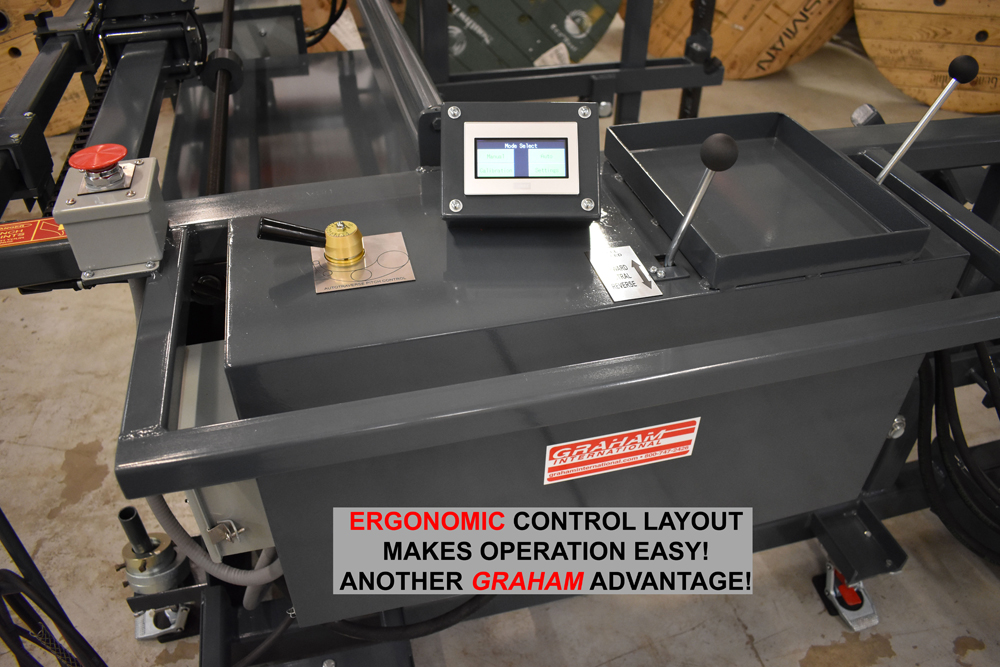

  • Conveniently Placed Lever Controls
  • Linear Slide Mounted High Torque Motor
  • Double Acting Cylinders - Powered Up & Down
  • Safety Valve so Reels Cannot Drift Down once raised
  • Hand Operated Linear Wire Traverse (Level Wind)
  • Two Sets of Reel Adapter Bushings

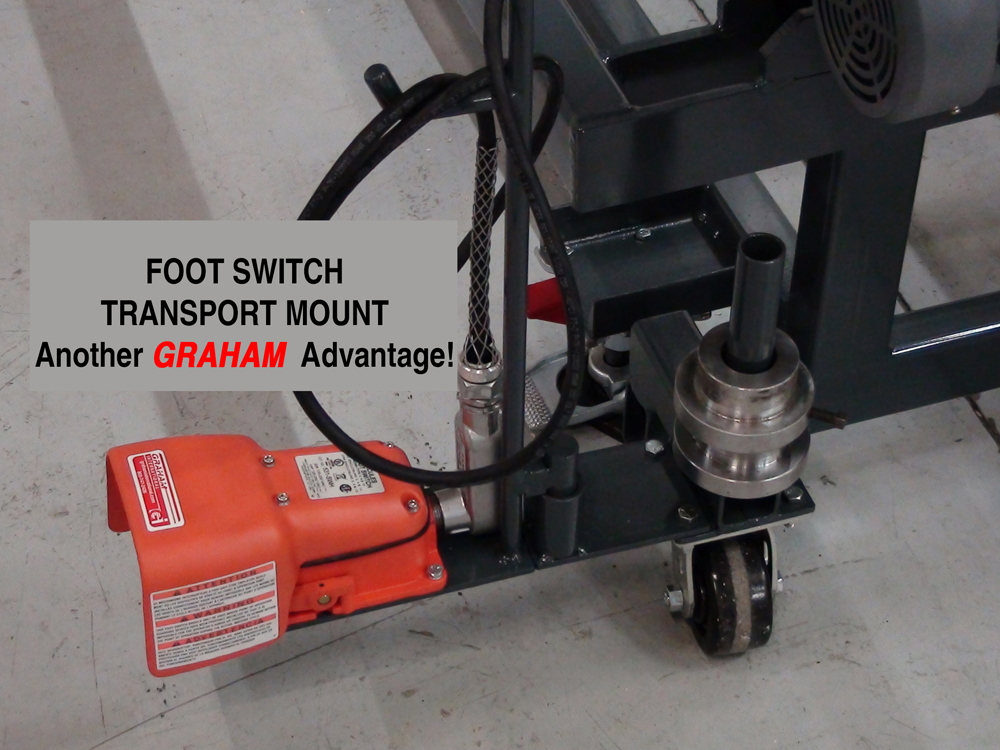

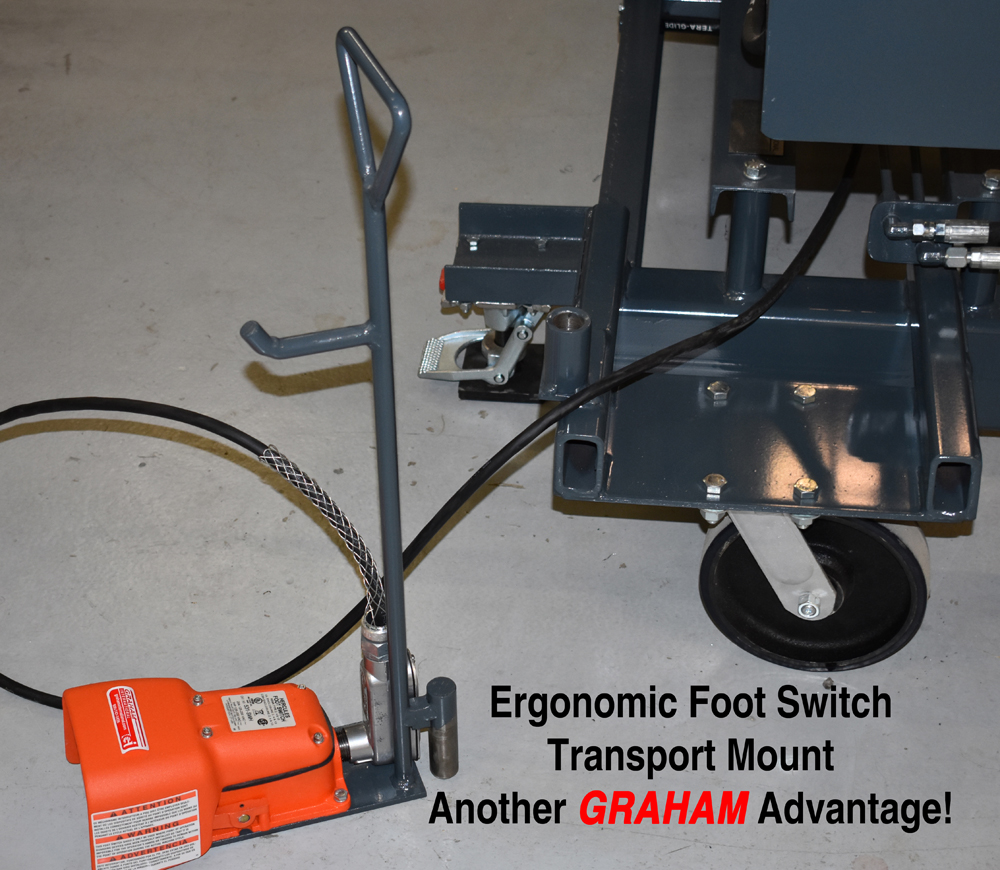

  • Safety foot switch & transport mount
  • 240/480 Volt 3 Phase

Available Options

  • Stop to Length
  • Power Wire Traverse
  • Automatic Wire Traverse
  • Measuring Devices
  • Paralleling Wire Guides
  • Collapsible Coilers
  • Paralleling Reels

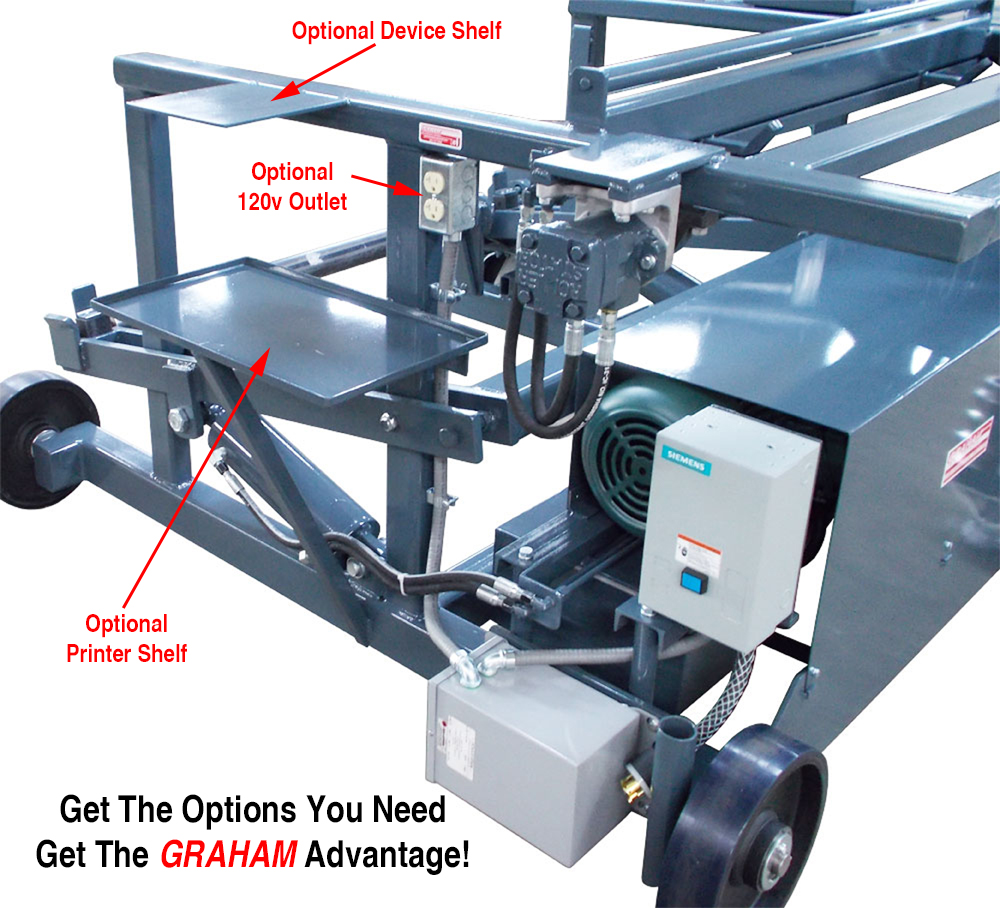

  • 120 Volt Power Outlets
  • Extra Shelves for Tools, Printers and Devices
  • Stretch Wrap Dispenser Mount
  • Spooling Attachment

Industry-Best Warranty

Every piece of Graham International equipment is backed by our industry-leading warranty.

2-Year Component Warranty Graham International warrants all units and equipment against defects in material and workmanship under normal use and service for 24 months from Invoice Date, including manufacturers components with shorter warranties.
5-Year Craftsmanship Warranty All Graham International equipment carries a 5-year warranty against defects in workmanship. When we say our equipment is built to last, we put the warranty behind it.
