Model H6T20-STM Shaftless Take-Up Machine

American flag Made in USA 2-Year Component / 5-Year Craftsmanship

Specifications

Maximum Reel Capacity 72" Diameter x 42" Wide — 10,000 lb. Accumulative Load
Minimum Reel Capacity 30" Diameter x 17" Wide
Pulling Capacity 20,000 lb. shown — available 6,000 to 40,000 lb.
Type Shaftless Take-Up — Mobile
Control 10" Display on Mobile Operator Station (MOS)
Measuring Device M200EE Included
Mobility Customer-Supplied Power Mobility — 2 MPH Max. Recommended
Request a Quote
Call us: (800) 747-2426

About This Equipment

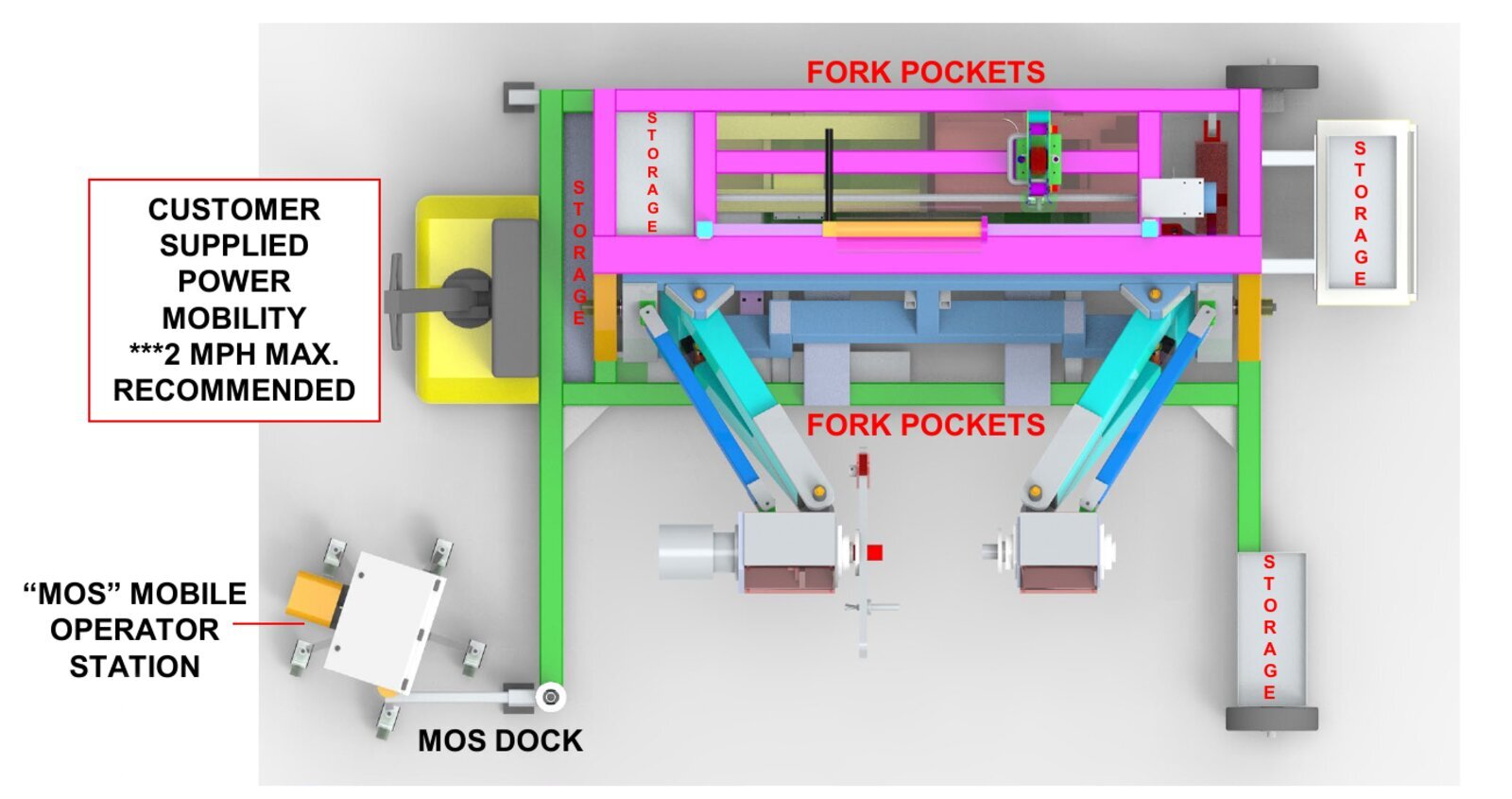

The H6T20-STM is a shaftless take-up machine built around Graham International's safest take-up operator position: no heavy axle shaft to handle, and an operator who is never standing beside a loaded, spinning reel. Everything is run from a wheeled Mobile Operator Station (MOS) — a 10" display, safety foot switch, and all reel and traverse controls, riding on 5 large swivel casters, that docks at the machine. The H6T20-STM handles reels up to 72" diameter by 42" wide with a 10,000 lb. accumulative load, and ships standard with the M200EE measuring device and a stretch wrap dispenser. Pulling configurations run from 6,000 to 40,000 lb., with the 20,000 lb. T20 pictured. Mobility is customer-supplied power, rated 2 MPH max. recommended, with fork pockets and onboard storage built into the frame. Designed and manufactured by Graham International in the USA.

Available Models

Model Configuration
H6T6-STM 6,000 LB Pull
H6T8-STM 8,000 LB Pull
H6T10-STM 10,000 LB Pull
H6T15-STM 15,000 LB Pull
H6T20-STM 20,000 LB Pull (Shown)
H6T30-STM 30,000 LB Pull
H6T40-STM 40,000 LB Pull

Standard Features

  • Safest Take-Up Machine Available
  • Safest Operator Location
  • Mobile Operator Station (MOS) with Dock and 5 Large Swivel Casters
  • All Controls on One Large 10" Display

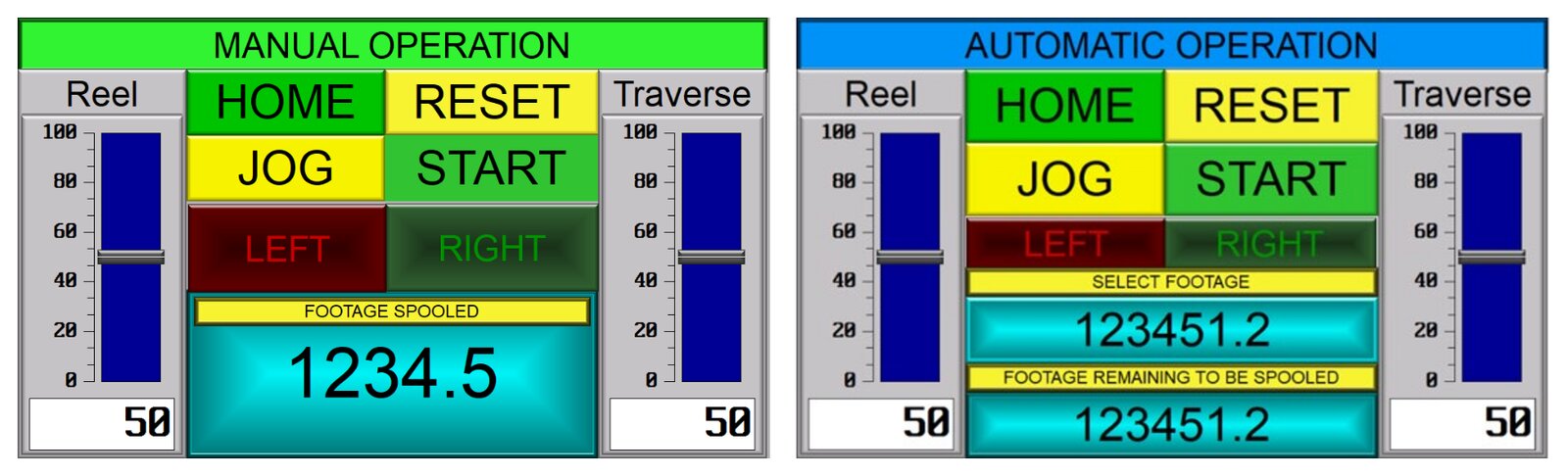

  • Manual and Automatic Operating Modes
  • Large Measuring Device Readout
  • Stop-to-Length
  • Auto Traverse
  • M200EE Measuring Device Included
  • Stretch Wrap Dispenser
  • Reel Speed Control
  • Wire Traverse Speed & Direction Control
  • Reel Load / Unload Controls
  • Reel Jog: Forward & Reverse
  • Safety Foot Switch
  • Fork Pockets
  • Onboard Storage
  • Made in the USA

Available Options

  • Paralleling Guide Box
  • Larger Measuring Devices
  • Collapsible Coiler

Industry-Best Warranty

Every piece of Graham International equipment is backed by our industry-leading warranty.

2-Year Component Warranty Graham International warrants all units and equipment against defects in material and workmanship under normal use and service for 24 months from Invoice Date, including manufacturers components with shorter warranties.
5-Year Craftsmanship Warranty All Graham International equipment carries a 5-year warranty against defects in workmanship. When we say our equipment is built to last, we put the warranty behind it.
