Center Hung Double Depth Reel Rack

American flag Made in USA 2-Year Component / 5-Year Craftsmanship

Specifications

Type Center Hung Double Depth
Capacity Up to 10,000 lb. per reel
Loading Chain hoist
Inserts Wearproof, replaceable
Safety Upper Reel Lock (CH-URL) — operated from the floor
Request a Quote
Call us: (800) 747-2426

About This Equipment

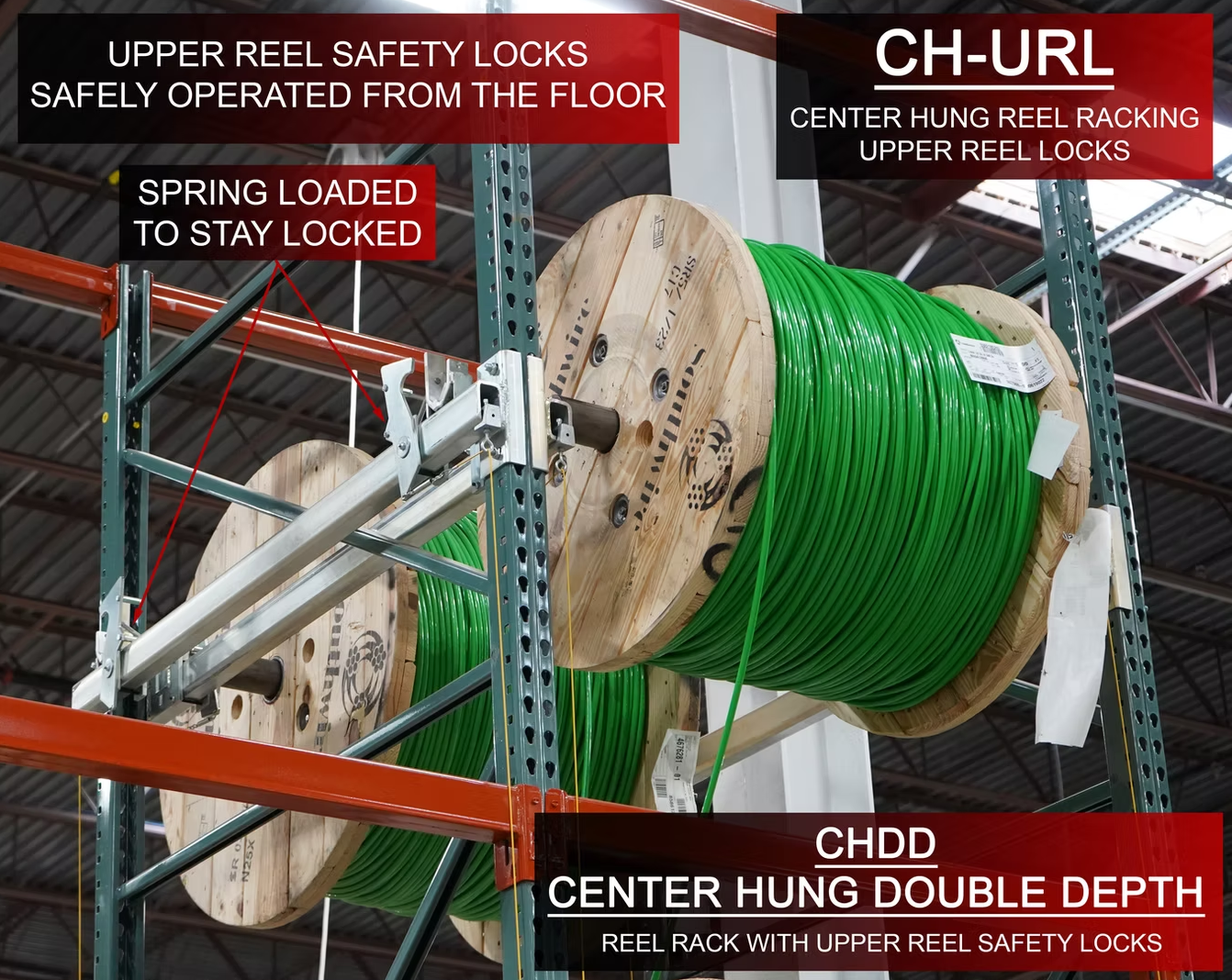

Center Hung Double Depth (CHDD) reel racks combine center-hung heavy-duty support with double-depth storage. Supporting reels up to 10,000 lbs. each, these racks maximize warehouse space while maintaining safe, easy access to all reels. Wearproof replaceable inserts and positive-locking safety pins are standard.

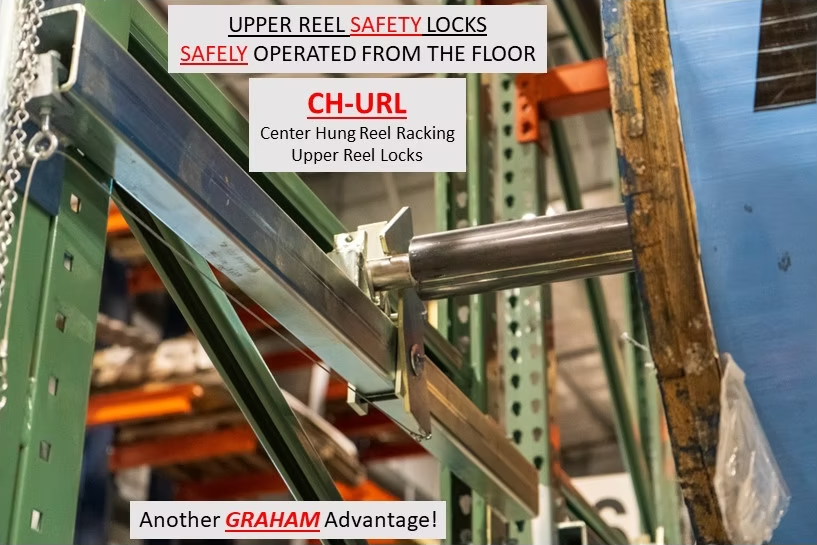

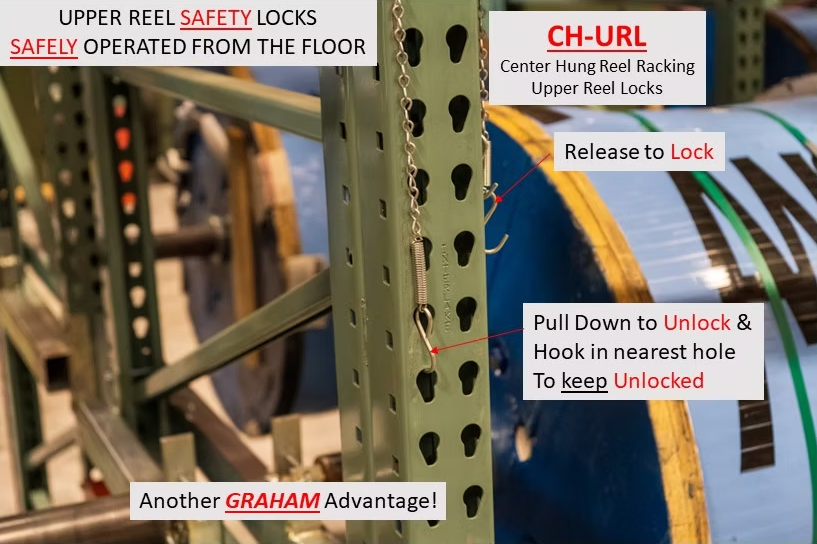

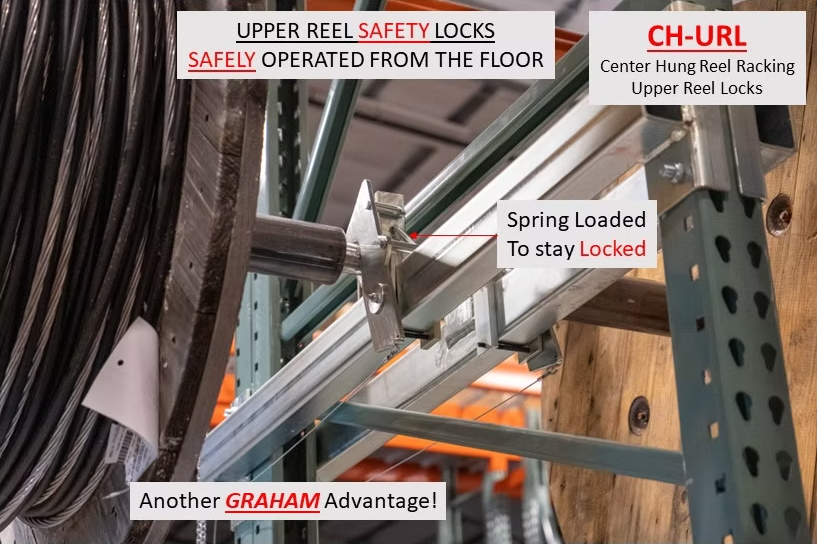

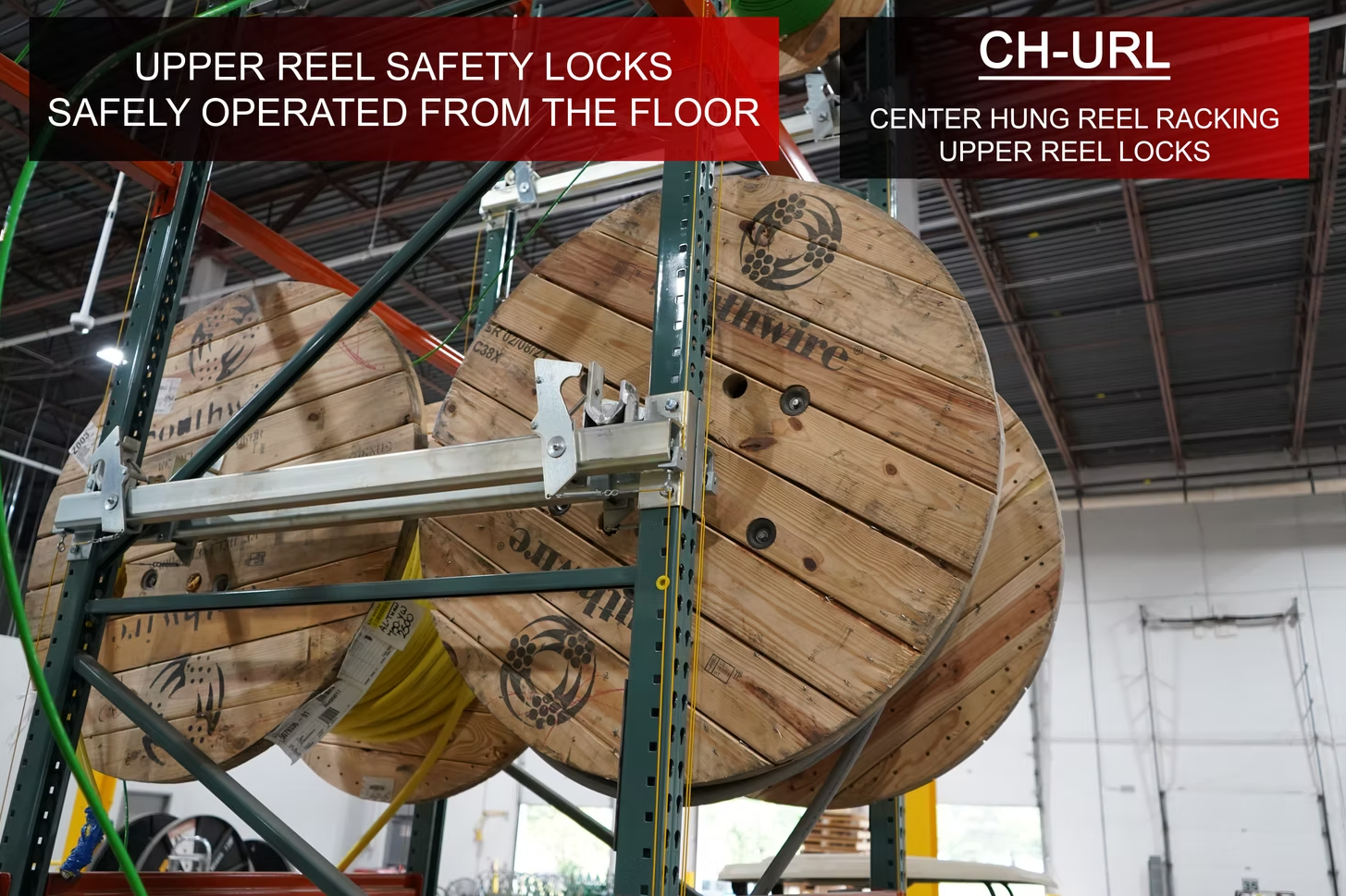

Upper Reel Safety Lock

Unlock and keep open for loading and unloading — safely operated from the floor.

Standard Features

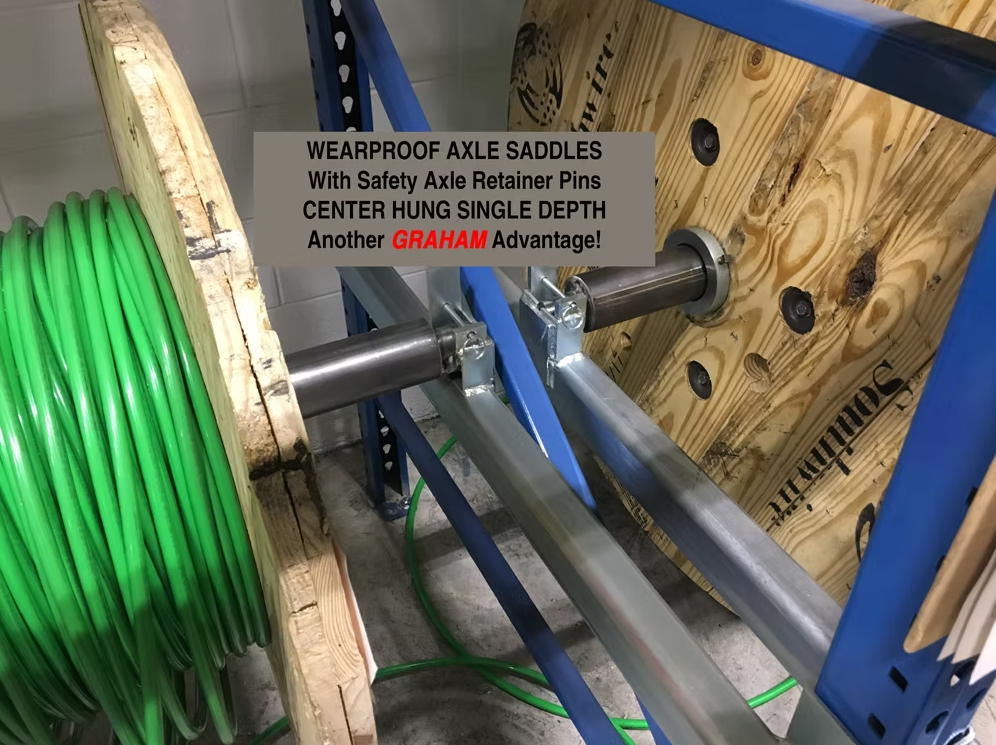

  • Wearproof — replaceable and inexpensive inserts
  • Should never wear out — axles or brackets
  • Buy once — should never wear out
  • Upper Reel Lock (CH-URL) provides safe reel retention — operated from the floor
  • Wearproof inserts reduce warehouse noise
  • Center hung allows for equal weight distribution on all 4 columns
  • Organize reel storage and dispensing — get reels off the floor
  • Solid steel reel adapter bushings and collars included
  • Floor plan design available — let us help
  • Configurable to suit your warehouse and reels

Available Options

  • Upper Reel Safety Locks (CH-URL) — safely operated from the floor
  • Additional Center Hung Reel Hanging Hardware
  • Front Hung (SD) Reel Hanging Hardware
  • DDR Guides — guides wire from double depth back reels
  • Reel Loading Cradles

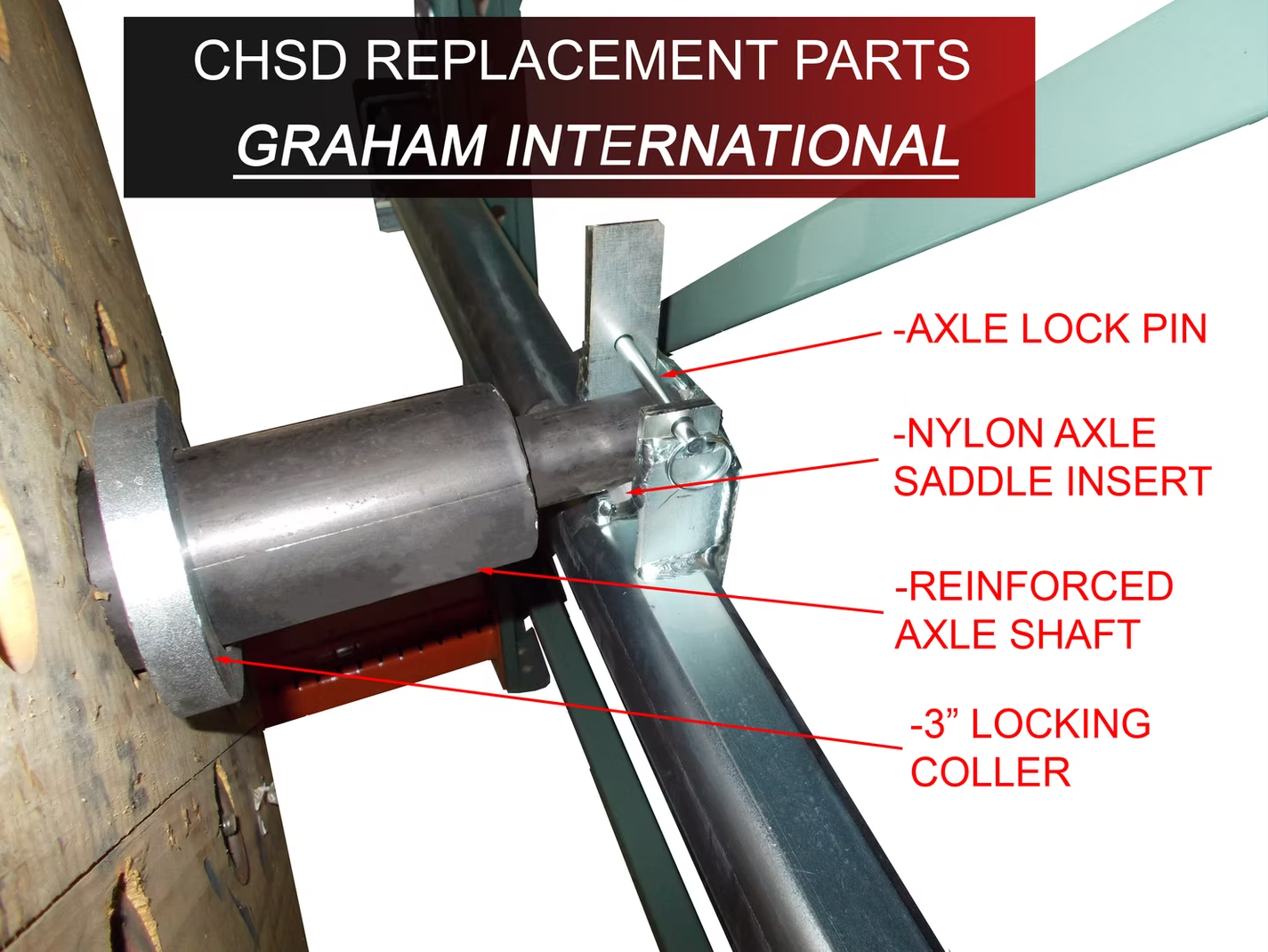

  • Replacement inserts
  • Replacement axle retainer pins

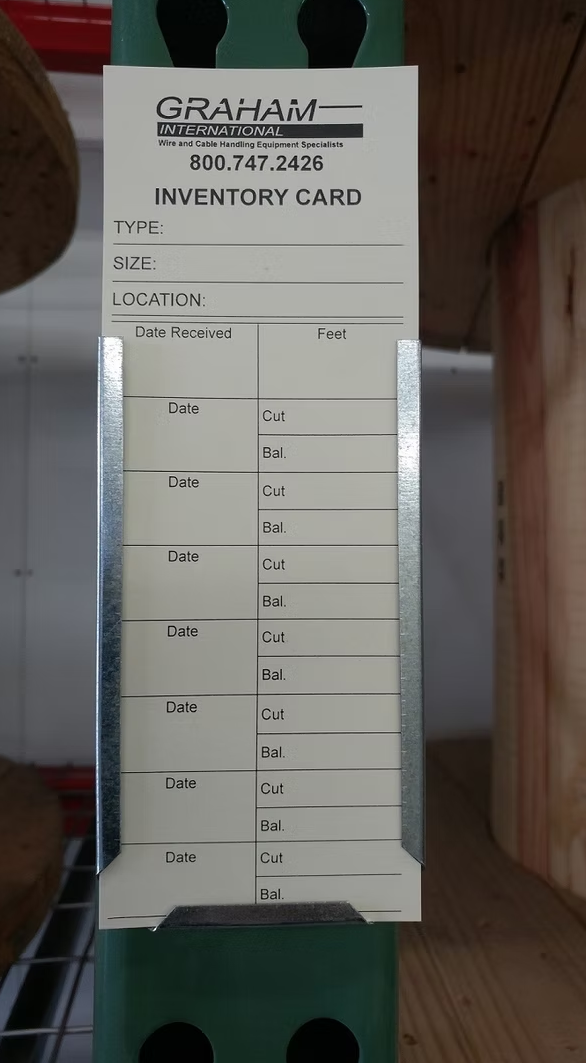

  • Inventory card holders
  • Inventory cards

Information Required For Quote

To provide an accurate quote for your racking system, please have the following information ready:

  • Ceiling Height or Rack Height Required
  • Maximum Reel Diameter
  • Maximum Reel Width (Outside Flange to Outside Flange)
  • Maximum Reel Weight
  • Do you need overhead storage?
  • Wire Room Layout Drawings Available
Request a Racking Quote

Industry-Best Warranty

Every piece of Graham International equipment is backed by our industry-leading warranty.

2-Year Component Warranty Graham International warrants all units and equipment against defects in material and workmanship under normal use and service for 24 months from Invoice Date, including manufacturers components with shorter warranties.
5-Year Craftsmanship Warranty All Graham International equipment carries a 5-year warranty against defects in workmanship. When we say our equipment is built to last, we put the warranty behind it.
Full Warranty Details

Ready to Get a Quote on the Center Hung Double Depth Reel Rack?

Our team is ready to help you select the right configuration for your operation — and can design your entire wire room layout.
