CJ2TM Reel Takeup Machine

American flag Made in USA 2-Year Component / 5-Year Craftsmanship

Specifications

Lift Type Hydraulic Jack Lift
Lift Capacity 2,500 lb.
Reel Capacity 54" Diameter x 34" Wide
Variable Speed 0 to 40 RPM
Pulling Capacity 3,000 lb.
Request a Quote
Call us: (800) 747-2426

About This Equipment

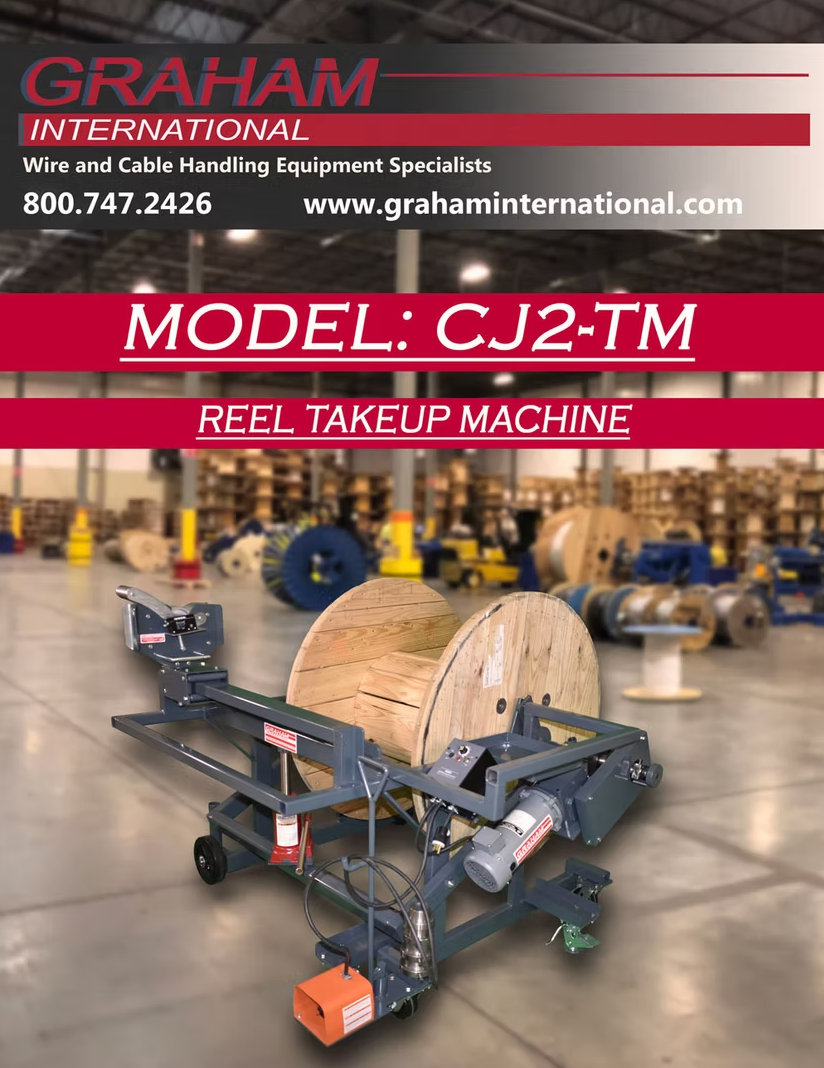

The CJ2TM is a compact yet powerful takeup machine with hydraulic jack lift for operations handling reels up to 54" diameter by 34" wide. With 2,500 lb. lift capacity and 3,000 lb. pulling capacity, it delivers reliable performance in a space-efficient footprint. Variable speed from 0 to 40 RPM, wearproof axle saddles, and adjustable floor lock brakes come standard.

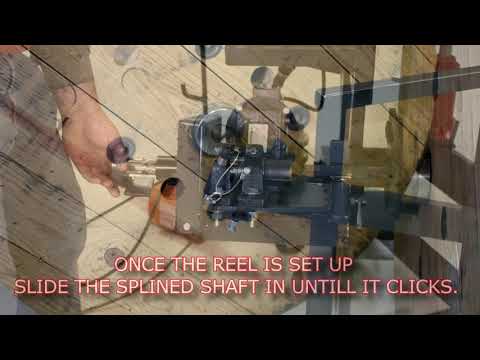

See It In Action

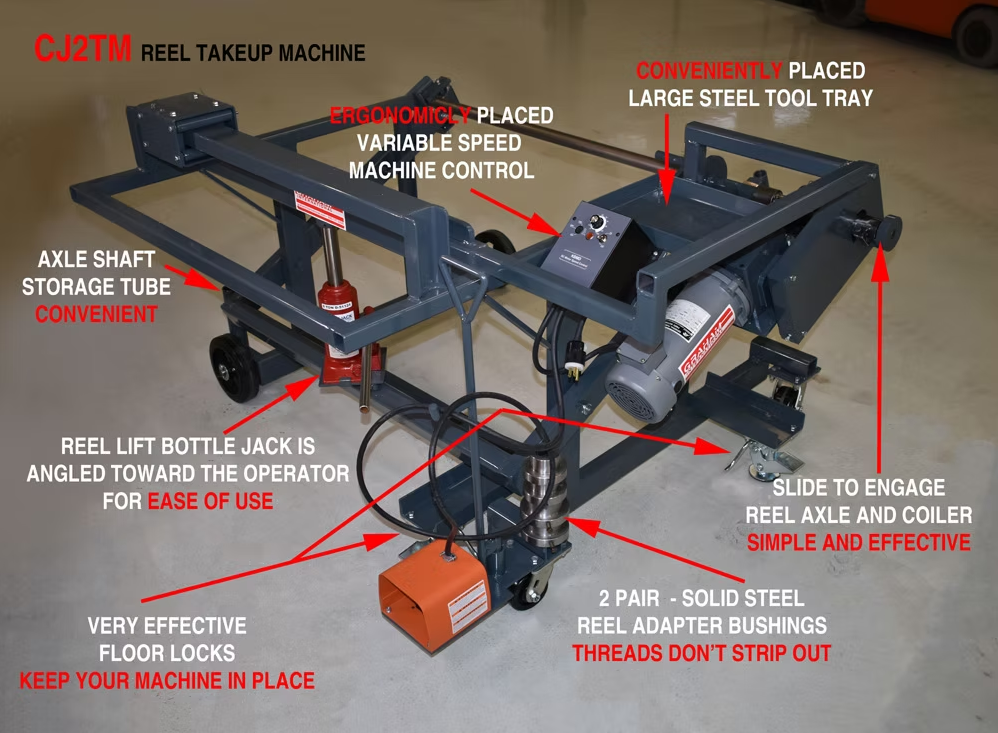

Standard Features

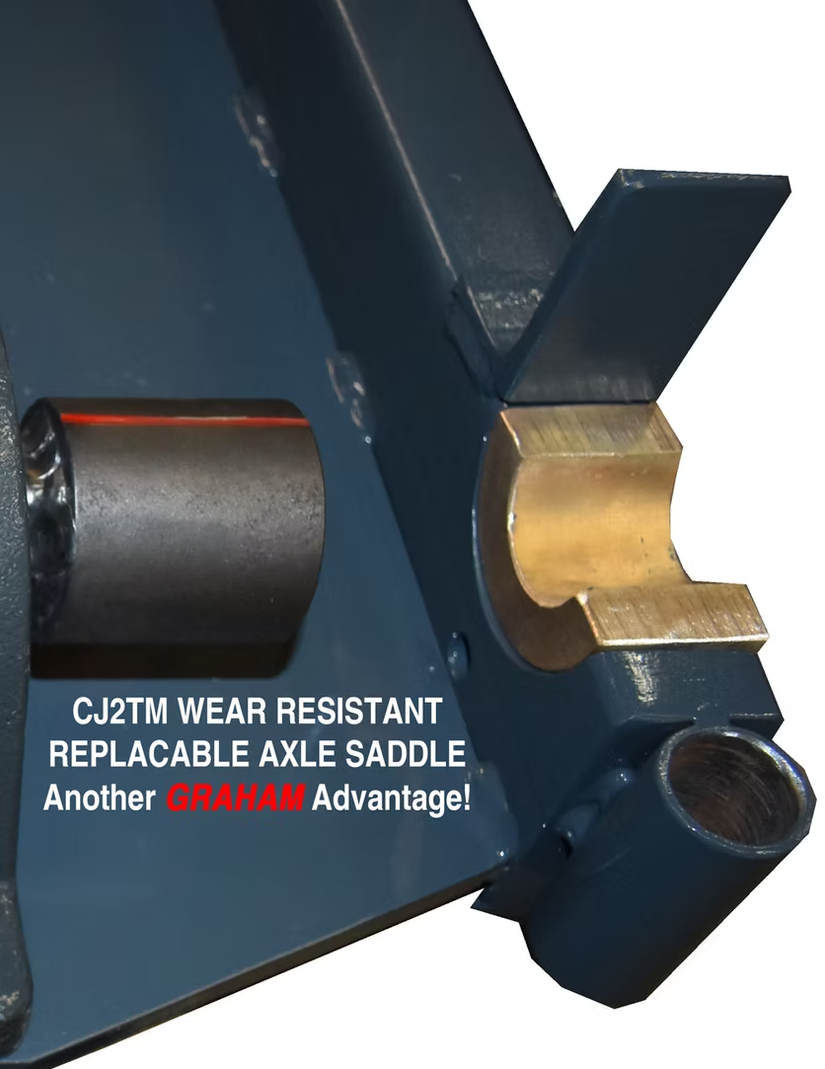

  • Wearproof axle saddles
  • 1.5" Solid 1045 Steel reel drive axle shaft

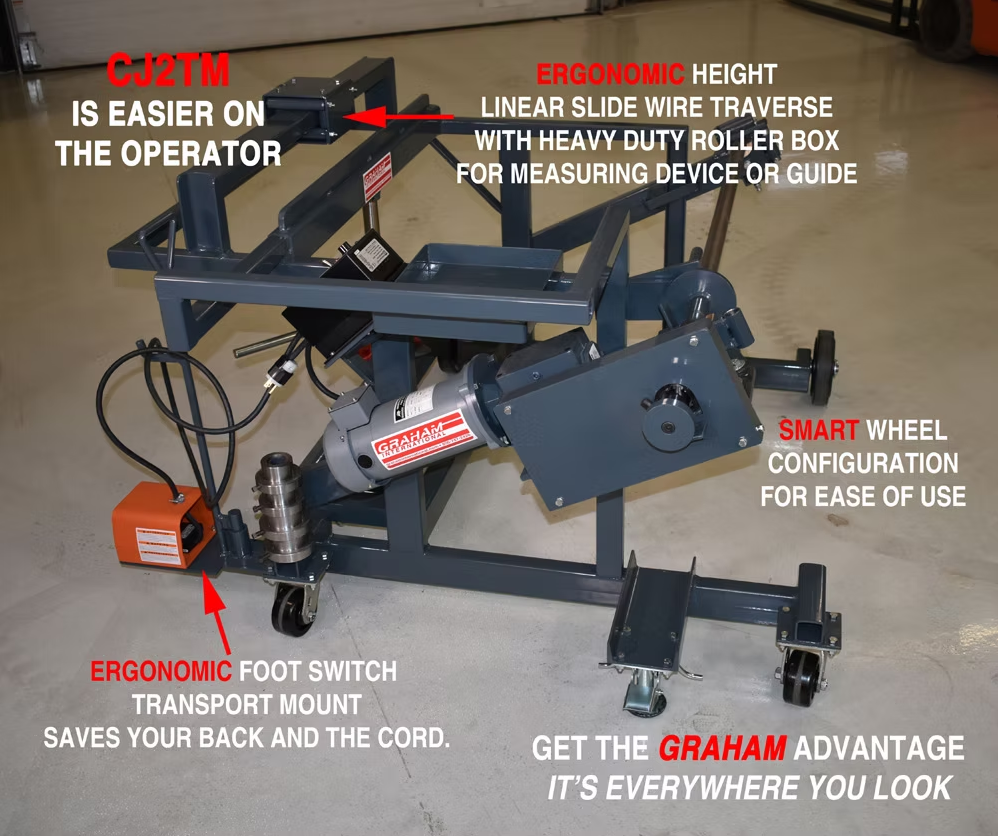

  • Safety foot switch & transport mount
  • Adjustable floor lock brakes
  • Easy rolling wheels and casters
  • Large steel tool tray
  • Axle shaft storage

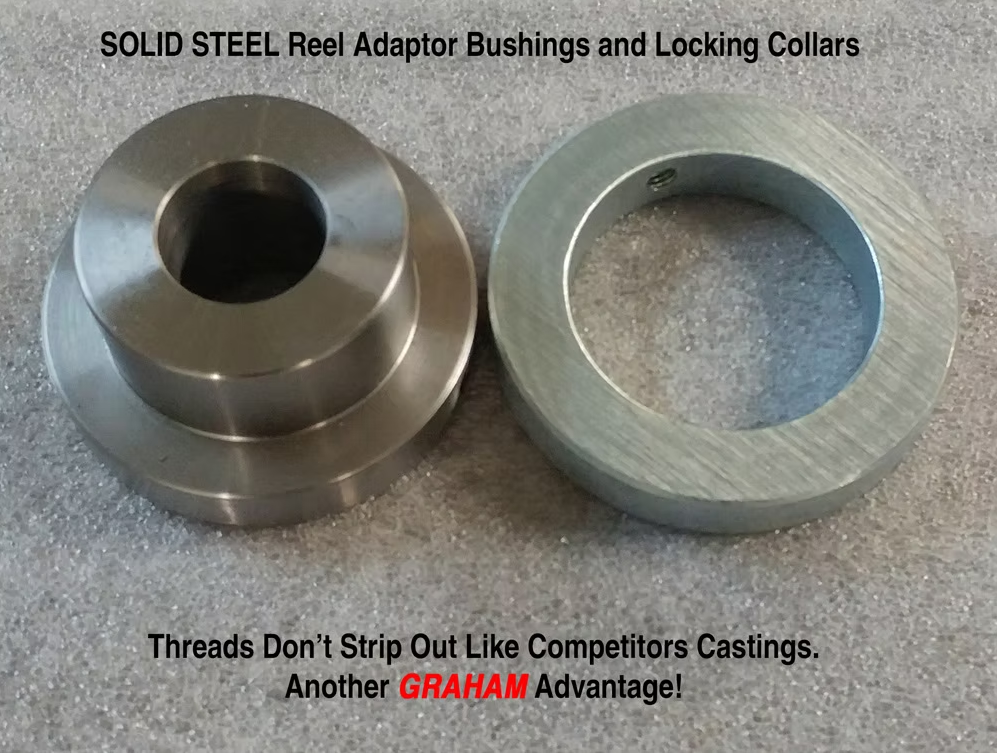

  • Solid steel reel adapter bushings & storage
  • Heavy-duty tubular steel frame
  • Conveniently placed controls
  • Linear slide mounted 1 HP high torque motor
  • Hand operated linear wire traverse (level wind)
  • Two sets of reel adapter bushings
  • 120 Volt single phase power

Available Options

  • Electric Lift
  • Stop to Length
  • Different HP Available
  • Different Speed Options
  • Holding Brake Motor
  • Power Wire Traverse
  • Automatic Wire Traverse
  • Measuring Devices
  • Paralleling Wire Guides
  • Collapsible Coilers
  • Stretch Wrap Dispenser Mount
  • Paralleling Reels

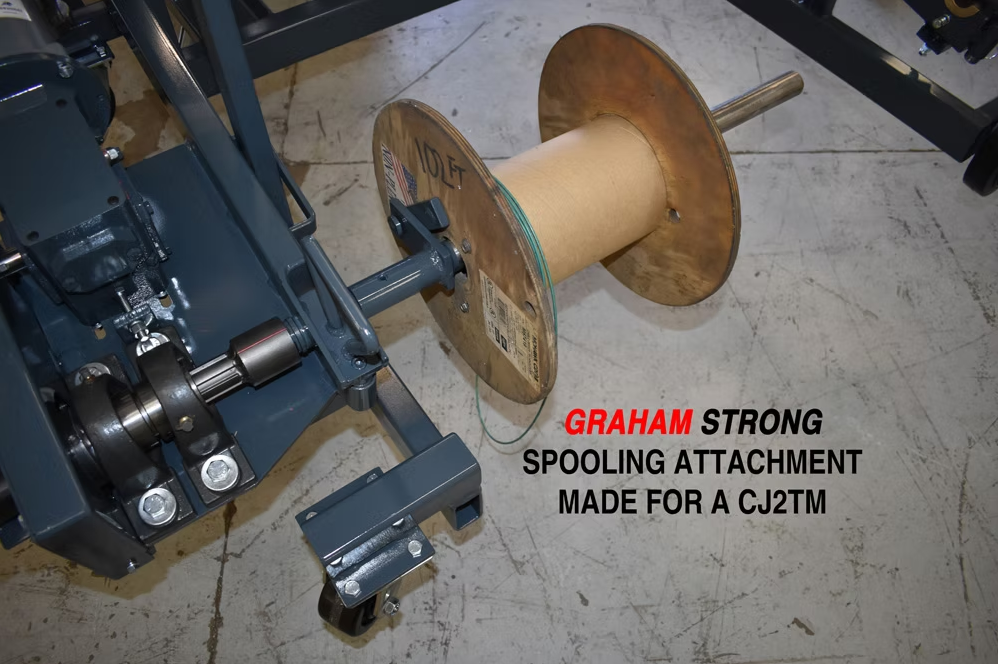

  • Spooling Attachment
  • Extra Shelves For Tools, Printers & Devices
  • 120v Power Outlets

Industry-Best Warranty

Every piece of Graham International equipment is backed by our industry-leading warranty.

2-Year Component Warranty Graham International warrants all units and equipment against defects in material and workmanship under normal use and service for 24 months from Invoice Date, including manufacturers components with shorter warranties.
5-Year Craftsmanship Warranty All Graham International equipment carries a 5-year warranty against defects in workmanship. When we say our equipment is built to last, we put the warranty behind it.
