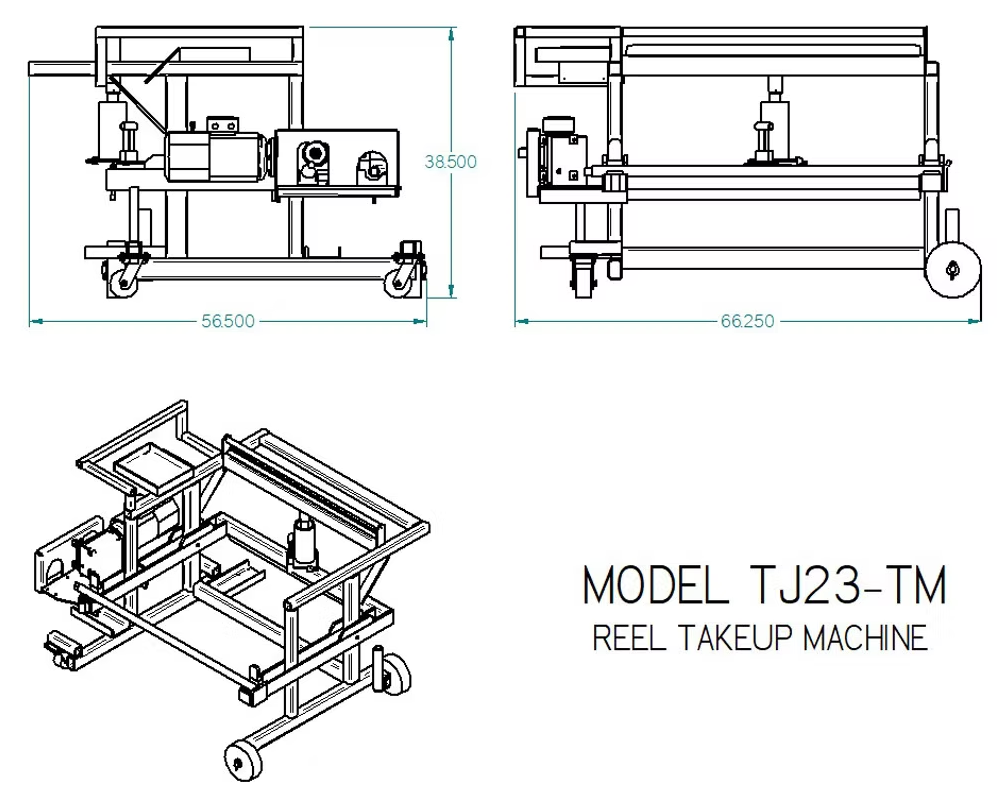

TJ23TM Reel Takeup Machine

American flag Made in USA 2-Year Component / 5-Year Craftsmanship

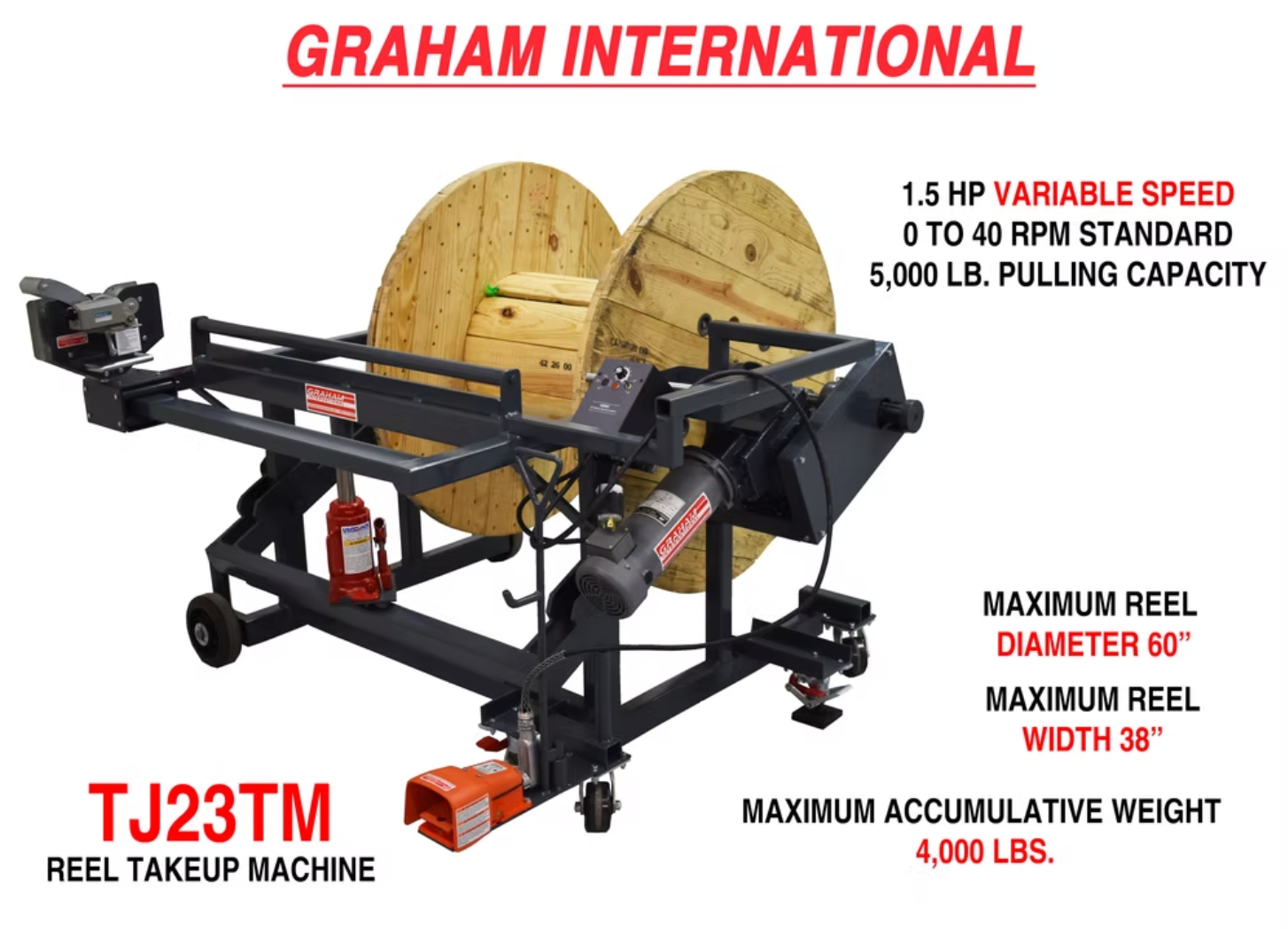

Specifications

Lift Type Hydraulic Jack Lift
Lift Capacity 4,000 lb.
Reel Capacity 60" Diameter x 38" Wide
Variable Speed 0 to 40 RPM
Pulling Capacity 5,000 lb.
Request a Quote
Call us: (800) 747-2426

About This Equipment

The TJ23TM offers hydraulic jack lift convenience with 4,000 lb. lift capacity and 4,000 lb. pulling capacity. Handling reels up to 60" diameter by 38" wide with variable speed from 0 to 40 RPM, this machine serves as a versatile mid-capacity takeup solution. Wearproof axle saddles, adjustable floor lock brakes, and heavy-duty tubular steel frame construction are standard.

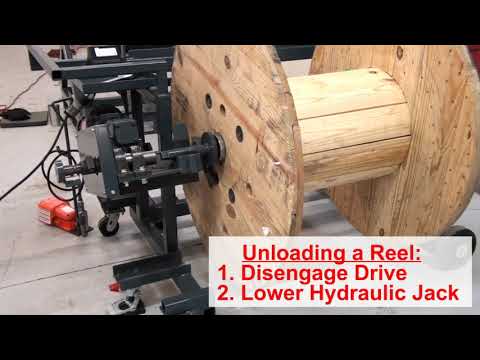

See It In Action

Standard Features

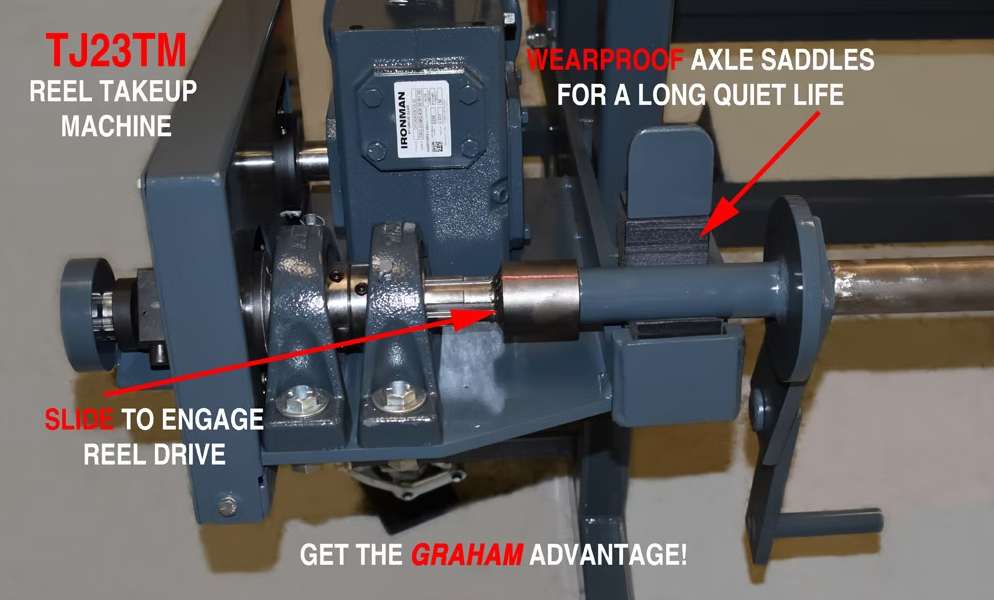

  • Wearproof axle saddles
  • 1.5" Solid 1045 Steel reel drive axle shaft

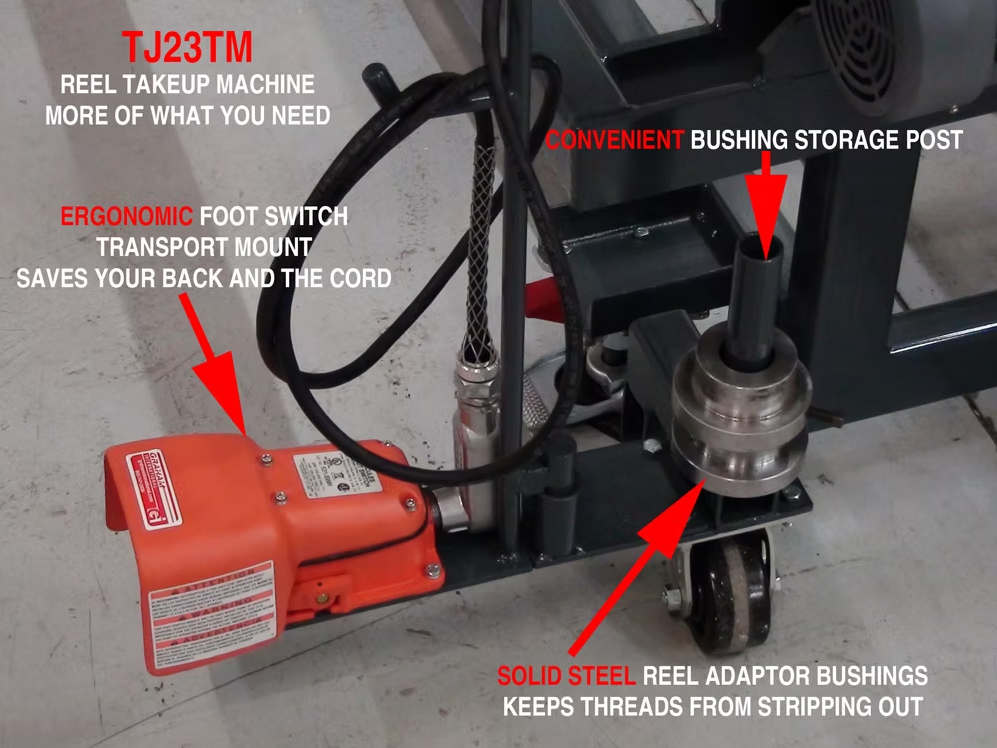

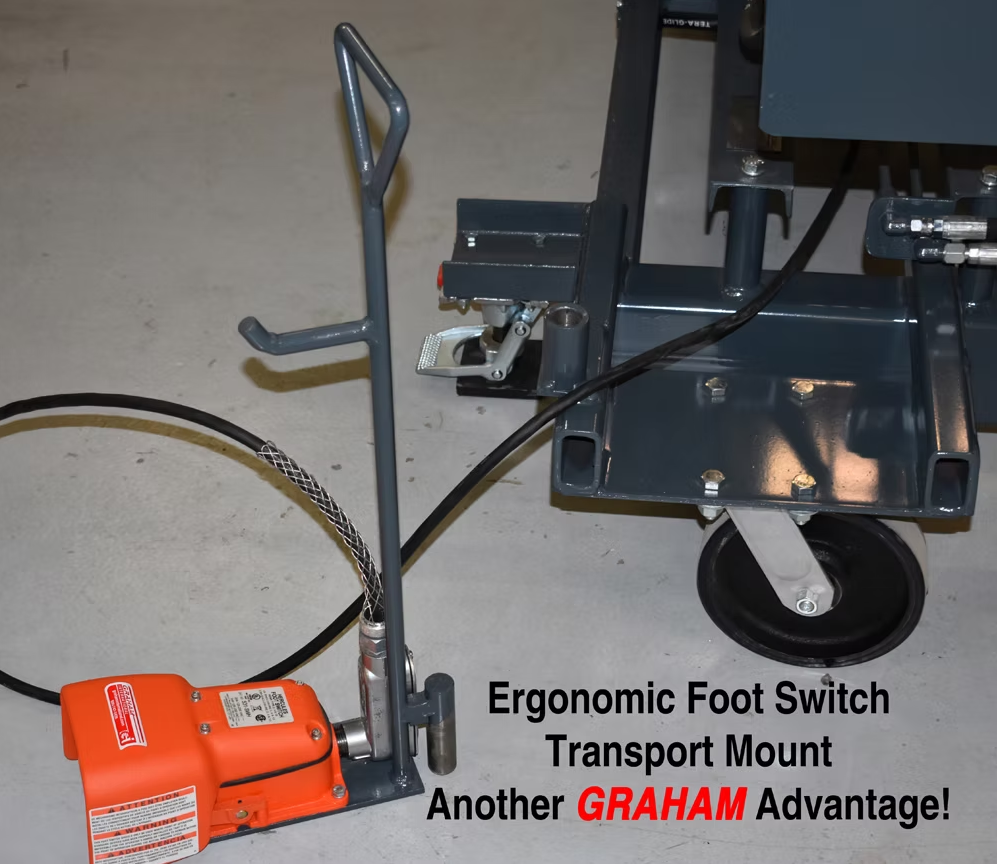

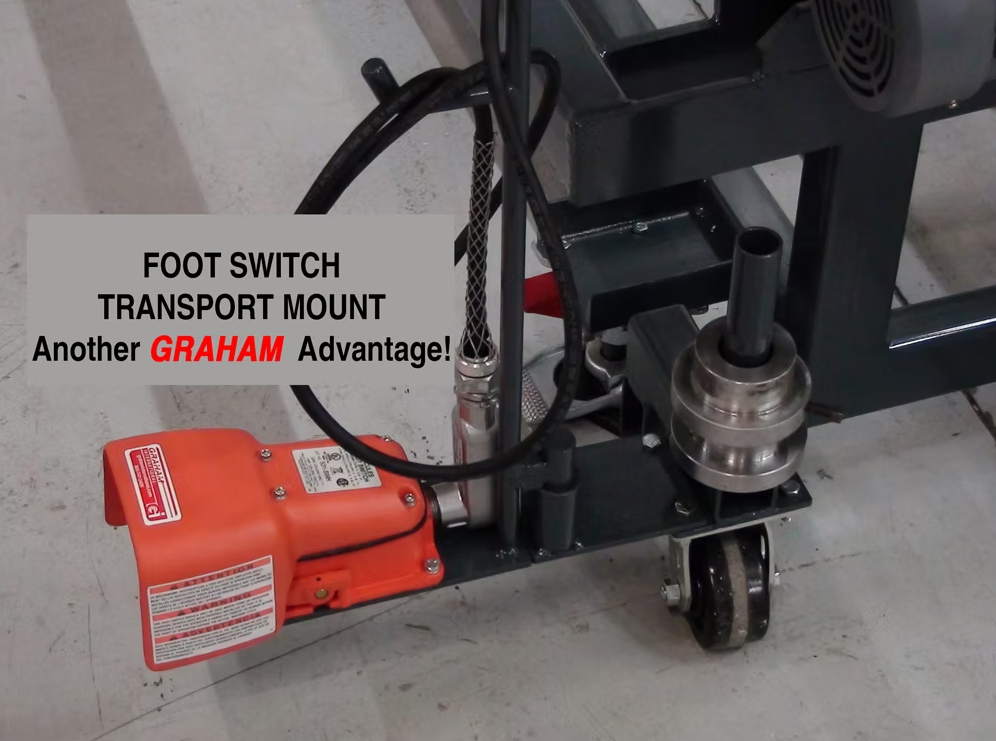

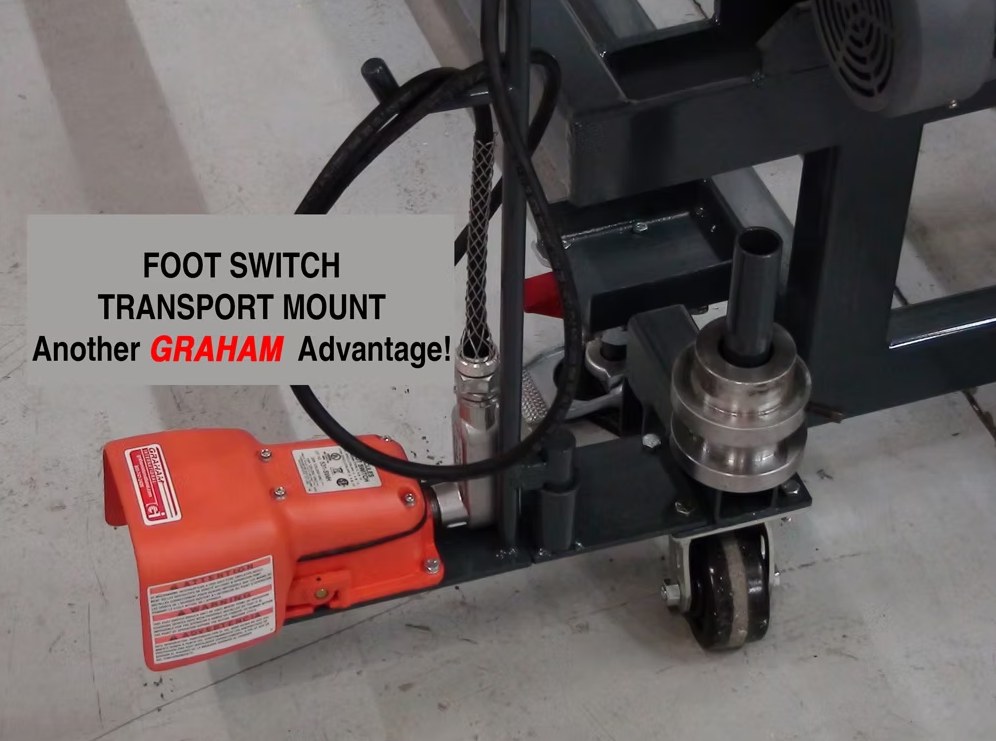

  • Safety foot switch & transport mount

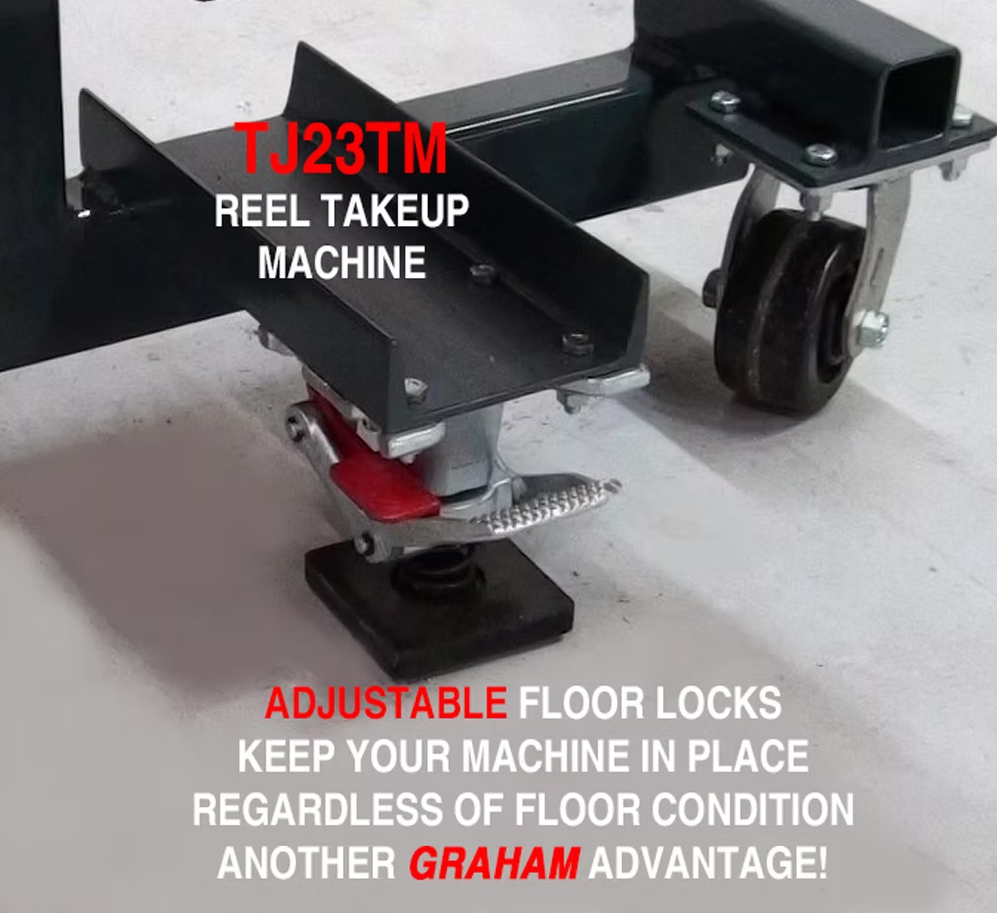

  • Adjustable floor lock brakes
  • Easy rolling wheels and casters

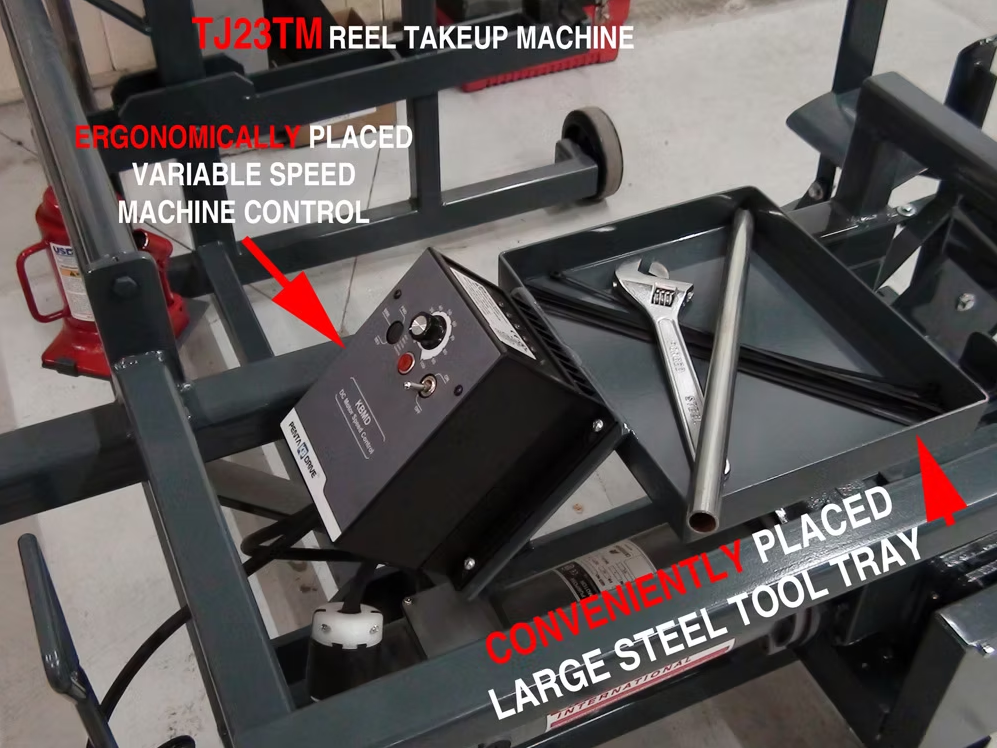

  • Large steel tool tray
  • Axle shaft storage

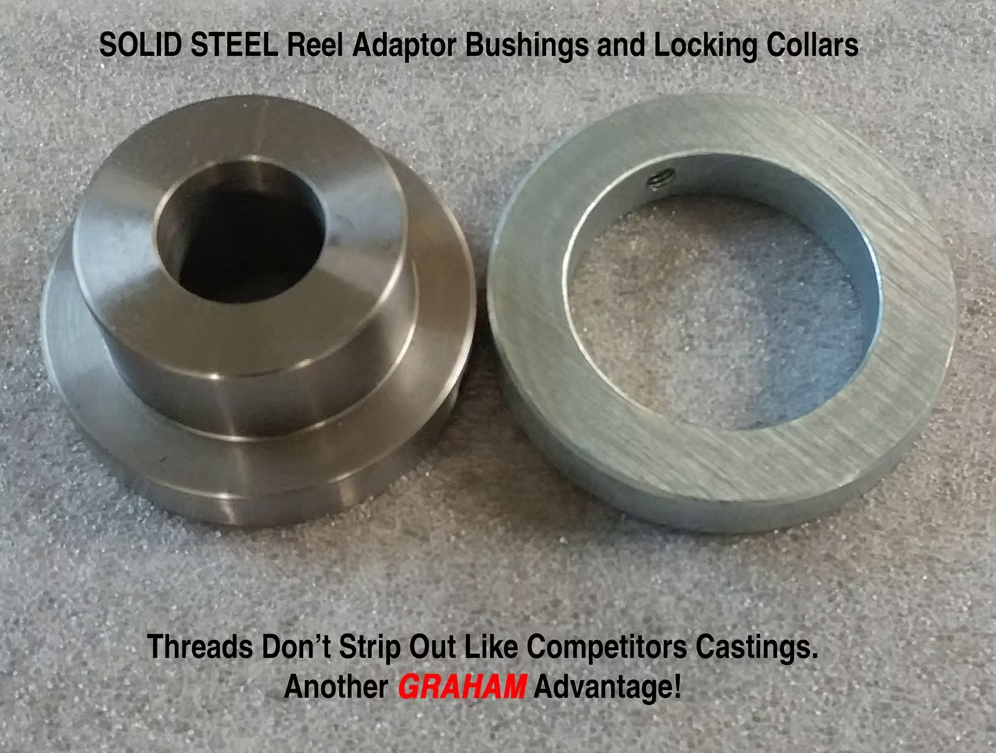

  • Solid steel reel adapter bushings & storage
  • Heavy-duty tubular steel frame
  • Conveniently placed controls
  • Linear slide mounted 1.5 HP high torque motor
  • Hand operated linear wire traverse (level wind)
  • Two sets of reel adapter bushings
  • 220 Volt single phase power

Available Options

  • Electric Lift
  • Stop to Length
  • Different HP Available
  • Different Speed Options
  • Holding Brake Motor
  • Power Wire Traverse
  • Automatic Wire Traverse
  • Measuring Devices
  • Paralleling Wire Guides
  • Collapsible Coilers
  • Stretch Wrap Dispenser Mount
  • Paralleling Reels
  • Spooling Attachment
  • Extra Shelves For Tools, Printers & Devices
  • 120v Power Outlets
  • 1 HP 120 Volt

Industry-Best Warranty

Every piece of Graham International equipment is backed by our industry-leading warranty.

2-Year Component Warranty Graham International warrants all units and equipment against defects in material and workmanship under normal use and service for 24 months from Invoice Date, including manufacturers components with shorter warranties.
5-Year Craftsmanship Warranty All Graham International equipment carries a 5-year warranty against defects in workmanship. When we say our equipment is built to last, we put the warranty behind it.
