IR Reel Rack 3,500 LB.

American flag Made in USA 2-Year Component / 5-Year Craftsmanship

Specifications

Capacity Up to 3,500 lbs. per reel
Section Width Max reel width + 5"
Depth Free standing, 48" deep
Type Double depth, loadable from both sides
Installation All upright frames must be anchored to floor
Safety Positive-locking ball detent safety pins
Request a Quote
Call us: (800) 747-2426

About This Equipment

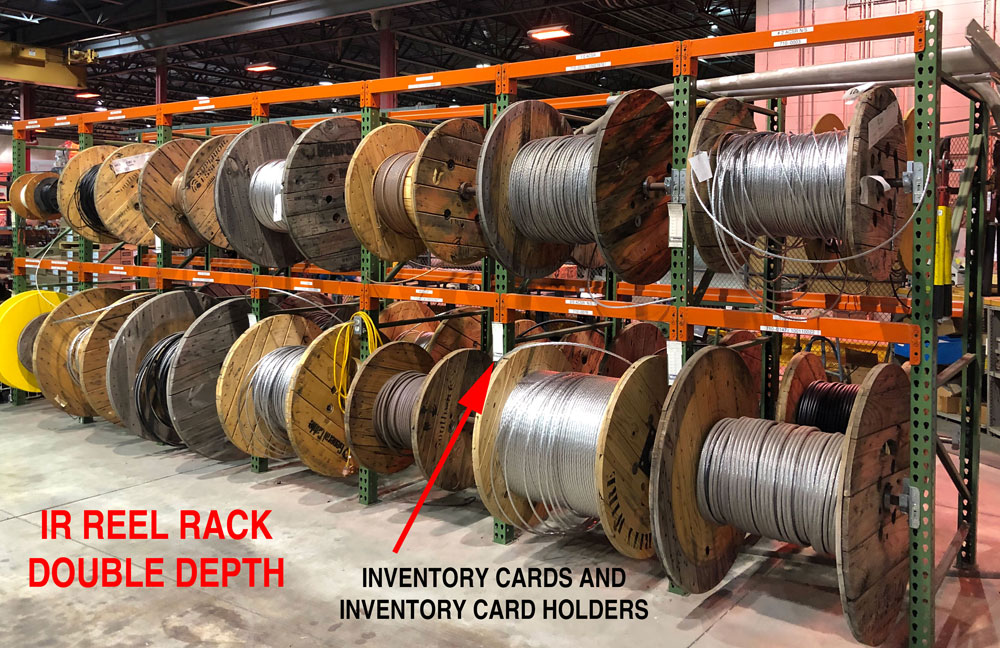

The IR (Inverted Reel) Racking System is a free-standing, 48" deep industrial reel storage and dispensing rack with a capacity of 3,500 lbs per axle position. Features wearproof replaceable inserts, ball detent pins, and solid steel reel adapter bushings and collars included.

Standard Features

  • Wearproof — replaceable and inexpensive inserts
  • Should never wear out — axles or brackets
  • Buy once — should never wear out
  • Ball detent pin over axle keeps reels in place
  • Wearproof inserts reduce warehouse noise
  • Organize reel storage and dispensing — get reels off the floor
  • Solid steel reel adapter bushings included
  • Floor plan design available — let us help
  • Configurable to suit your warehouse and reels
  • Double depth — loadable from both sides
  • Free standing, 48" deep
  • All upright frames must be anchored to the floor

Available Options

  • Additional Reel Hanging Hardware
  • Reel Loading Cradles
  • Replacement Inserts
  • Replacement Axle Retainer Pins

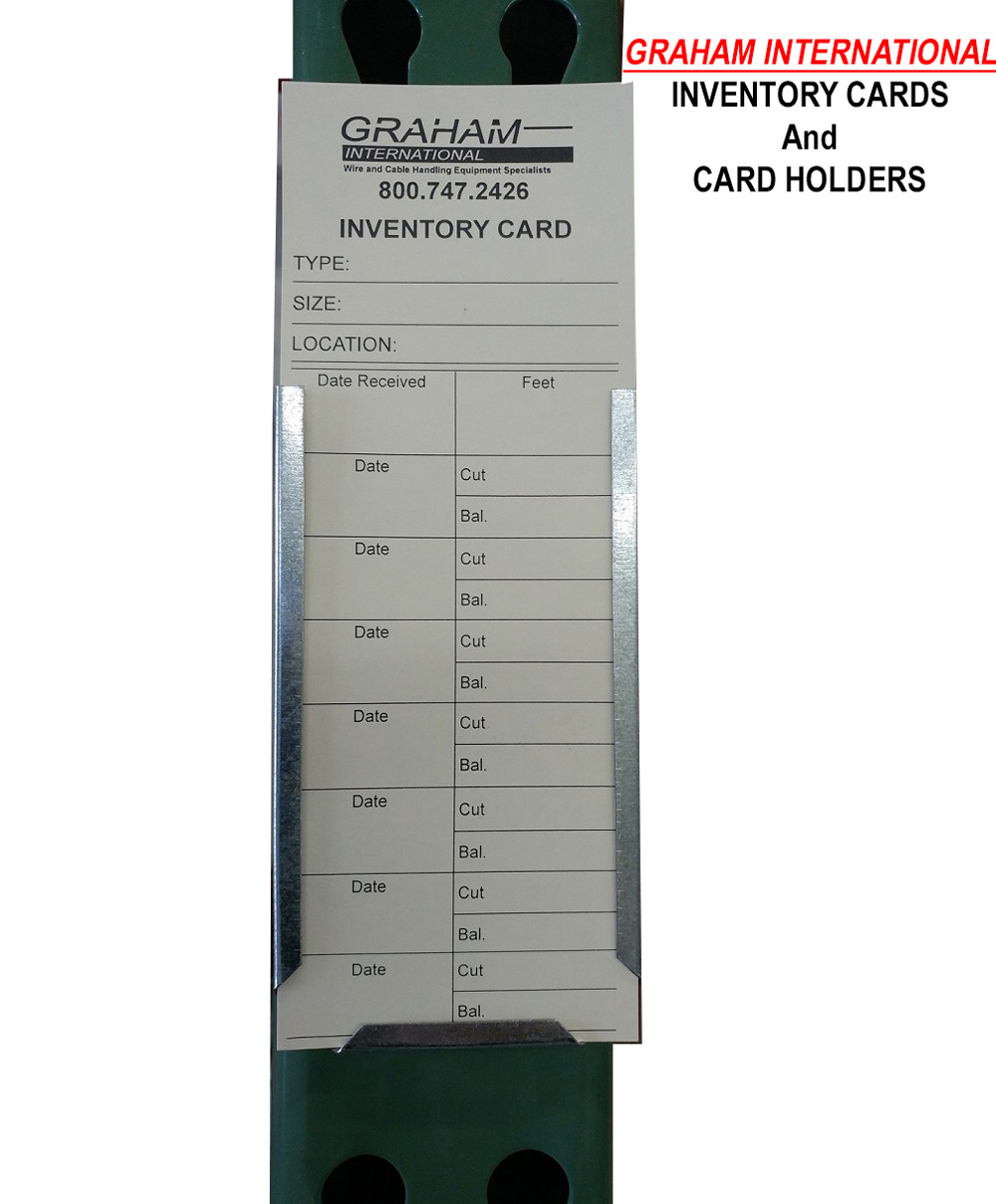

  • Inventory Card Holders
  • Inventory Cards

Information Required For Quote

To provide an accurate quote for your racking system, please have the following information ready:

  • Ceiling Height or Rack Height Required
  • Maximum Reel Diameter
  • Maximum Reel Width (Outside Flange to Outside Flange)
  • Maximum Reel Weight
  • Do you need overhead storage?
  • Wire Room Layout Drawings Available
Request a Racking Quote

Industry-Best Warranty

Every piece of Graham International equipment is backed by our industry-leading warranty.

2-Year Component Warranty Graham International warrants all units and equipment against defects in material and workmanship under normal use and service for 24 months from Invoice Date, including manufacturers components with shorter warranties.
5-Year Craftsmanship Warranty All Graham International equipment carries a 5-year warranty against defects in workmanship. When we say our equipment is built to last, we put the warranty behind it.
Full Warranty Details

Ready to Get a Quote on the IR Reel Rack 3,500 LB.?

Our team is ready to help you select the right configuration for your operation — and can design your entire wire room layout.
