H3T Series Reel Takeup Machines

American flag Made in USA 2-Year Component / 5-Year Craftsmanship

Specifications

Lift Capacity 4,000 lb.
Reel Capacity 60" Diameter x 38" Wide
Variable Speed 0 to 60 RPM
Brake Motor Tension Holding, rated for 10,000 lb. pull and above
Pulling Range 6,000 lb. to 20,000 lb.
Request a Quote
Call us: (800) 747-2426

About This Equipment

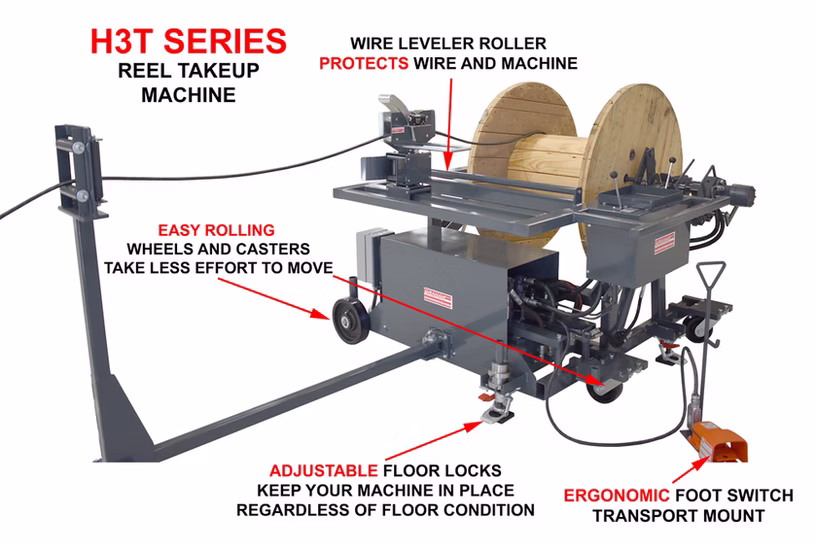

The H3T Series delivers dependable takeup performance for wire and cable operations requiring up to 4,000 lb. lift capacity. Handling reels up to 60" diameter by 38" wide, these machines feature tension-holding brake motors rated for 10,000 lb. pull and above, wearproof axle saddles, and variable speed from 0 to 60 RPM. Heavy-duty tubular steel frame construction and adjustable floor lock brakes keep your operation running safely and efficiently. Available in four pulling capacity configurations from 6,000 to 20,000 lb.

See It In Action

Available Models

Model Configuration
H3T6 6,000 LB Pull
H3T8 8,000 LB Pull
H3T10 10,000 LB Pull
H3T20 20,000 LB Pull

Standard Features

  • Wearproof axle saddles

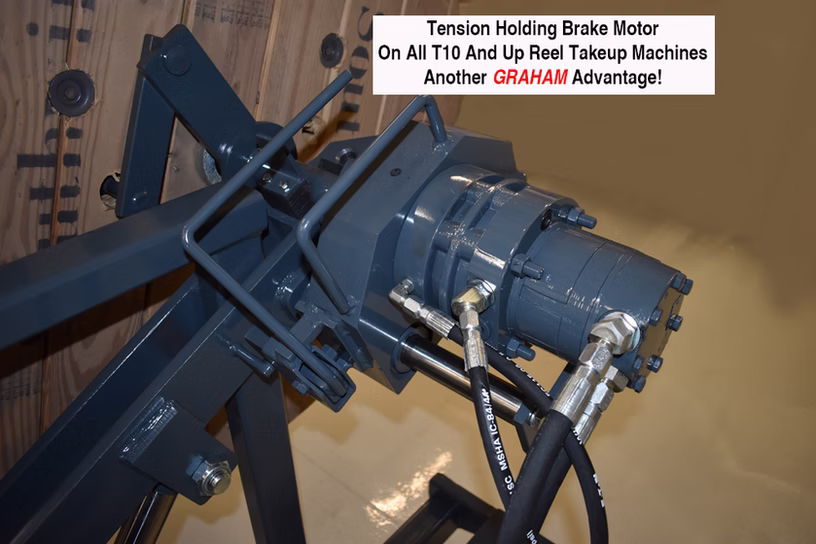

  • Tension-holding brake motor

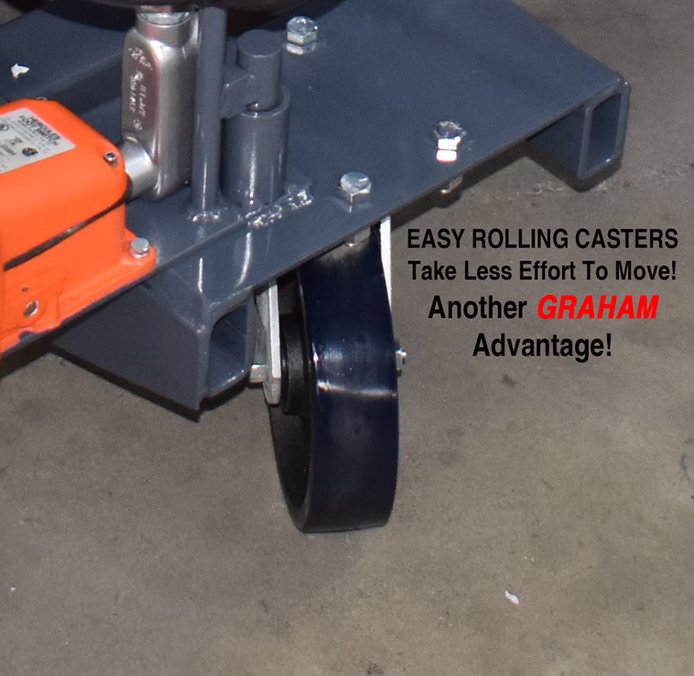

  • Easy rolling wheels and casters
  • Adjustable floor lock brakes
  • Heavy-duty tubular steel frame construction
  • Large steel tool tray

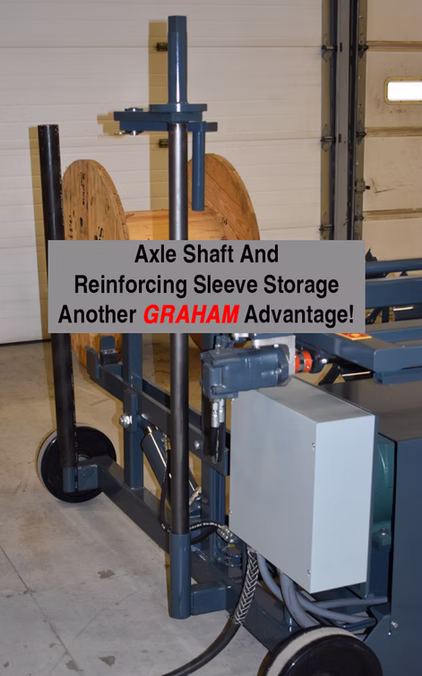

  • Axle shaft storage

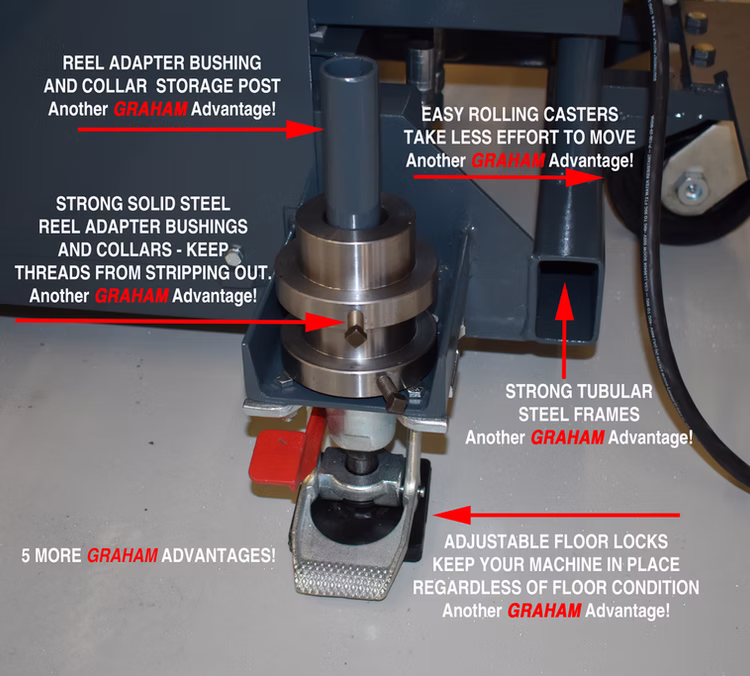

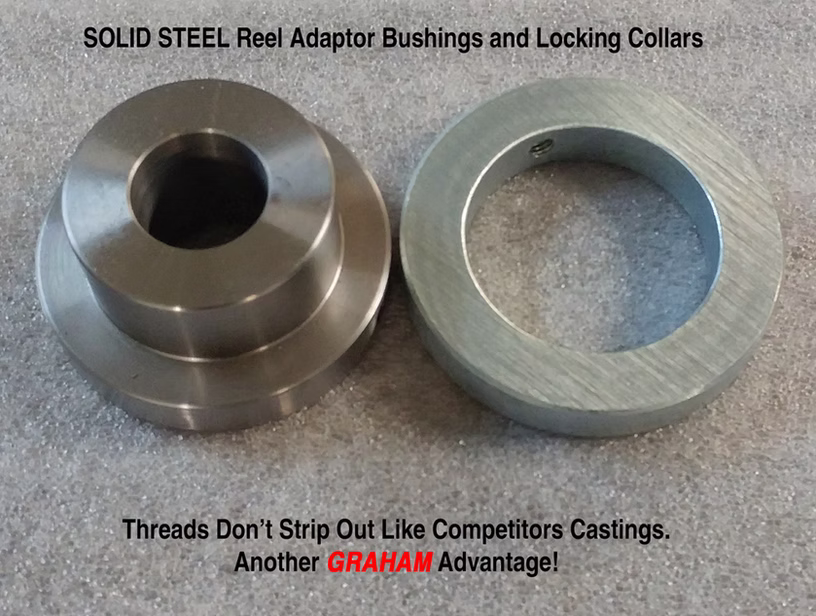

  • Solid steel reel adapter bushing storage
  • All Hydraulic Functions
  • Dynamic Braking on Reel Drive
  • Conveniently Placed Lever Controls
  • Linear Slide Mounted High Torque Motor
  • Double Acting Cylinders - Powered Up & Down
  • Safety Valve so Reels Cannot Drift Down once raised
  • Hand Operated Linear Wire Traverse (Level Wind)
  • Two Sets of Reel Adapter Bushings

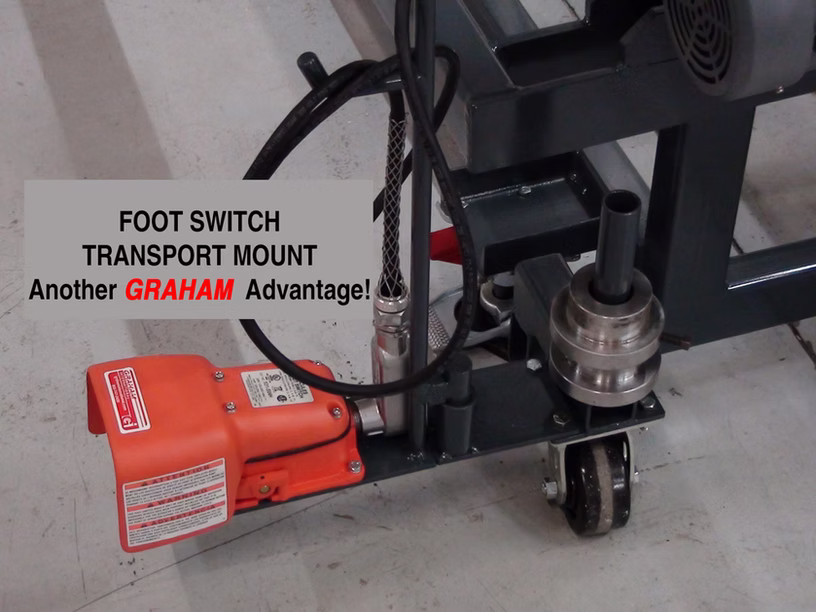

  • Safety foot switch & transport mount
  • 240/480 Volt 3 Phase

Available Options

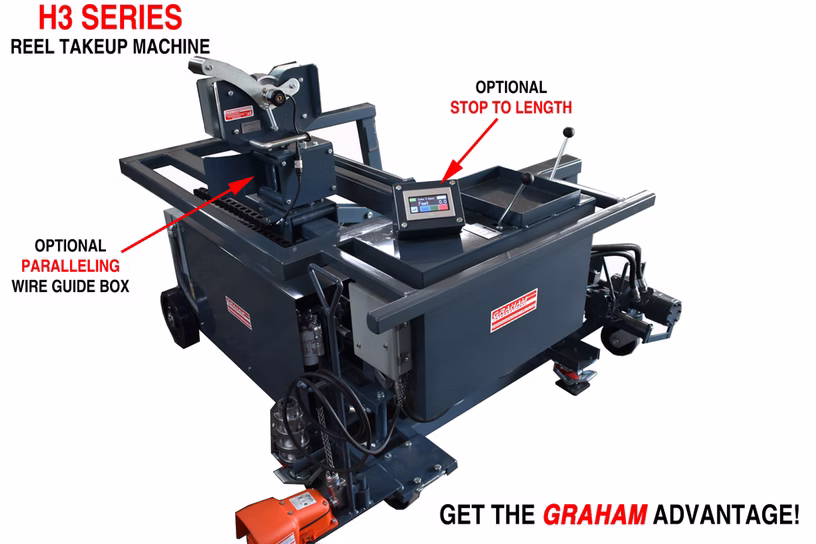

  • Stop to Length
  • Power Wire Traverse
  • Automatic Wire Traverse
  • Measuring Devices
  • Paralleling Wire Guides
  • Collapsible Coilers
  • Stretch Wrap Dispenser Mount
  • Paralleling Reels
  • Spooling Attachment

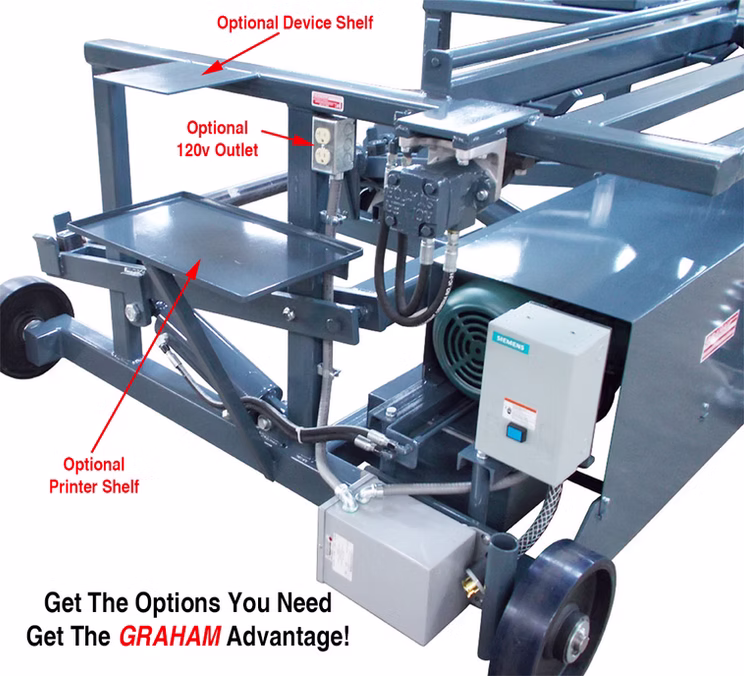

  • Extra Shelves For Tools, Printers & Devices
  • 120v Power Outlets

Industry-Best Warranty

Every piece of Graham International equipment is backed by our industry-leading warranty.

2-Year Component Warranty Graham International warrants all units and equipment against defects in material and workmanship under normal use and service for 24 months from Invoice Date, including manufacturers components with shorter warranties.
5-Year Craftsmanship Warranty All Graham International equipment carries a 5-year warranty against defects in workmanship. When we say our equipment is built to last, we put the warranty behind it.
Full Warranty Details

Ready to Get a Quote on the H3T Series Reel Takeup Machines?

Our team is ready to help you select the right configuration for your operation — and can design your entire wire room layout.
